Product Details:

For 3/8" (10 mm) Glass Only

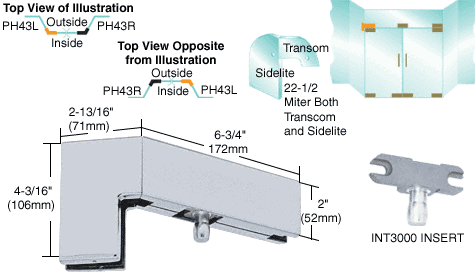

The CRL 135º Left Hand Sidelite Mounted Transom Patch is used to support a transom from a sidelite glass panel. It comes with a INT300 Insert for mounting a door with CRL's PH21A Top Door Patch Fitting. The Insert can also be moved on the non-hinged side, allowing for a double swing door. A INT306 Transom Patch Door Stop Insert can be used to create a one way door.


Color: Polished Stainless

Minimum Order: 1 Each

Additional Product Information:
GLASS FABRICATION REQUIRED: Three 3/4 inch (19 millimeter) Diameter Holes and one Corner Notch. Sidelite and Transom require 22-1/2º Miters
