Product Details:
- Available Locking and Non-Locking Models
- Accepts 5/8" (16 mm) Throw Bolt
|

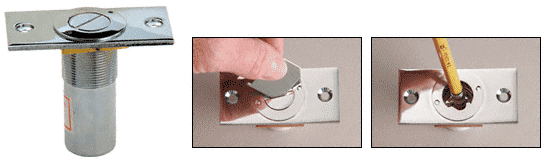

This CRL Dust Proof Locking Keeper with Mounting
Plate works with our 777S Door Rail Floor Lock and our
AMR205A Patch Lock.
Accepts 15/32 inch (12 millimeter) plunger from these or similar
devices. Keeper is packed with two Flat Head Screws. Requires 1
inch (25 millimeters) diameter hole drilled 2 inches (51
millimeters) deep into floor.
Fabrication Required:
- One inch (25 millimeters) diameter hole drilled two inches (51
millimeters) deep into floor and two holes for #10 screw
anchors.
- Width of Mounting Plate: 1-3/8 in (35 mm)
- Length of Mounting Plate: 2-7/8 in (73 mm)
- Color: Polished Stainless
