Product Details:

Works With Both 2-9/16" and 2-3/4" (65 and 70 mm) Pivot Setback Patch Fittings
High Density Cast Body
Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass

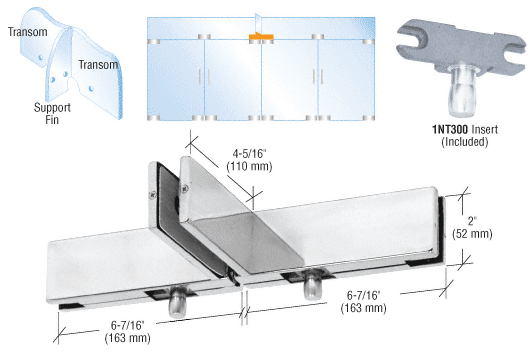

The CRL Double Transom Patch with Support Fin Bracket is designed to provide two top pivoting points for side-by-side double doors with either a single lite or double lite split transom. It comes with two INT300 Inserts for mounting doors with CRL's PH20A or PH21A Top Door Patch Fitting. A INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a INT305 Transom Patch Keeper Insert can be installed for use with an AMR205 Lock when used for top of the door installation. The support fin glass should be sized in accordance with approved design criteria (refer to GANA or Manufacturer's Manual), and secured to the ceiling with a PH92 Ceiling Mounted Support Fin Bracket.


Color: Polished Stainless
Minimum Order: 1 Each

Additional Product Information:
GLASS FABRICATION REQUIRED: FOR SPLIT TRANSOM (Two Lites of Glass): Four 3/4 inch (19 millimeter) Diameter Hole and Three Corner Notches. FOR SINGLE TRANSOM (One Lite of Glass): Four 3/4 inch (19 millimeter) Diameter Holes, One Corner Notch and One U-Cutout.
