Category: B7S Heavy Duty Base Shoes
CRL Polished Stainless Custom Square Heavy-Duty Base Shoe Drilled With Hole Pattern D
SKU: B7SDPSC
UPC:
Product Details:
- Typically Used as the Base Channel for Glass Railing
Systems or Windscreens
- Drilled and Counter Bored, or We Will Custom Drill to
Your Specifications
- Custom Cutting and Mitering Service
- Test
Reports Available
|

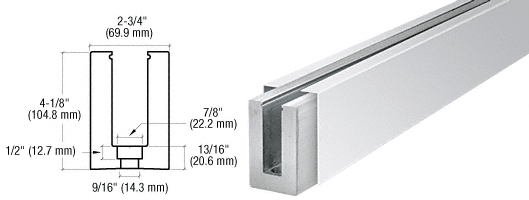

The CRL B7S Series Heavy-Duty Square
Base Shoe is used as the base channel for glass railing systems. It
can be clad in several choices of architectural finishes. The most
critical component in a railing system is the proper attachment of
the Base Shoe to the substrate. CRL has engineered and tested a
variety of attachment methods, and has developed an acceptable
combination of drilling patterns and fasteners. A printed brochure
with Instructions, Installation Hints, Cleaning, and Refinishing
techniques is available. CAPACITY:
3/4 inch (19 millimeter) Thick Glass when using GlassWedge®
Dry Glaze System or Wet Glaze System
For Test Results and Drilling Recommendations,
click here.
NOTE: 240 inch (6.10 meter) Extrusion Only (without holes) cannot
be used for the GlassWedge® Dry Glaze System unless the Base
Shoe is fabricated to the above tested and approved hole and
counter bore pattern. The GlassWedge® Dry Glaze System
requires that the attachment holes be counter bored so that no part
of the fastener protrudes above the base of the channel
opening.
SHIPPING NOTE: Due to the difficulty in packaging and handling 240
inches (6.10 meters) stock lengths, it is suggested that you Will
Call these at any of our distribution centers. If requiring
shipment, all packaging and handling concerns must be agreed to by
CRL and the customer prior to shipping. All shipping arrangements
will be documented on your quotation for your signed approval.
