Category: CRL 4x10 Center Lock With Bottom Rail Extension Throw Rod
CRL Polished Stainless Center Lock With Bottom Rail Extension Rod Throw - One Point Plus Keeper
SKU: DE4103PS
UPC:
Product Details:
- Allows You to Lock Doors at a Comfortable
Height
- Available With Back-to-Back "D" Handle
- Completely Fabricated and Ready to
Install
- Available in Several Architectural
Finishes
- Custom Colors Available on Special Order
- For 1/2" (12 mm) Tempered Glass
|

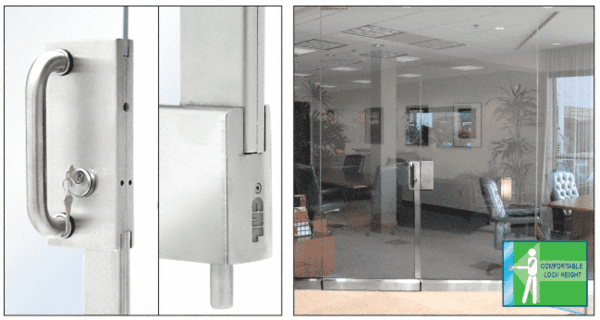

This CRL 4" x 10" Center Lock has an
extended throw that latches through the bottom door rail into the
floor, and a strike for the horizontal throw from adjacent Center
Lock. It is completely activated at a comfortable distance above
the floor utilizing a built-in Adams Rite 1860-02 Lock with a
modified extension rod allowing the throw to enter the floor. A
small edge channel that travels down from the Center Lock to the
bottom rail conceals the extension rod. It includes an 8 inch (203
millimeter) back-to-back "D" Handle, a Thumbturn on the inside, and
a Keyed Cylinder on the outside. ORDERING NOTE: This innovative
system is intended for the fabrication of new doors only. Retrofit
applications are not recommended because the bottom door rail must
be factory modified to accept the Extension Rod Throw, and the door
glass requires a specially shaped cut-out to accept the Center
Lock. Please contact Technical Sales for ordering assistance.
