CRL Polished Stainless B7S Series Fascia Mount Custom Length Heavy-Duty Square Base Shoe for 3/4" Glazing
Category: Just Arrived!
CRL Polished Stainless B7S Series Fascia Mount Custom Length Heavy-Duty Square Base Shoe for 3/4" Glazing
SKU: B7SFPSC
UPC:
Product Details:
- Typically Used as the Base Channel for Glass Railing Systems in
Arenas

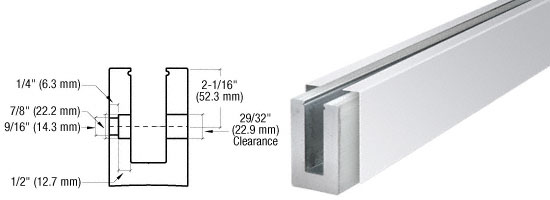

The CRL B7S Series Heavy-Duty Square Base
Shoe is used as the base channel for glass railing
systems. It can be clad in five choices of architectural finishes.
The most critical component in a railing system is the proper
attachment of the Base Shoe to the substrate. CRL has engineered
and tested a variety of attachment methods, and has developed an
acceptable combination of drilling patterns and fasteners. The five
tested methods of attachment can be found on pages R282 to R283,
and associated fasteners are shown on pages R284 to R285 . A
printed brochure with Instructions, Installation Hints, Cleaning,
and Refinishing techniques is available. Center to Center 12" (305
mm).
NOTE: 120" (3.05 m) and 240" (6.10 m) Extrusion Only (without
holes) cannot be used for the Dry Glaze System unless the Base Shoe
is fabricated to the above tested and approved hole and counter
bore pattern. The Dry Glaze System requires that the attachment
holes be counter bored so that no part of the fastener protrudes
above the base of the channel opening.
- Hole Size: 9/16 in (14.3 mm)
- Length: Custom
- Color: Polished Stainless
- Drilled Fascia Mount Holes: 12 in (305 mm)
Center-to-Center
