Product Details:

• Exclusive CRL Wedge-Lock Dry Glazed Glass Securing System for Rapid Installations and Steadfast Holding Power
•

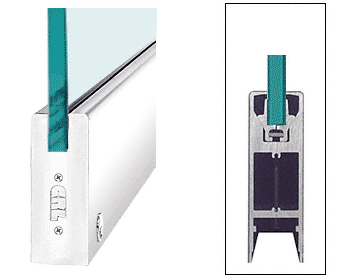

  An innovative new glass entrance system, the CRL Wedge-Lock Door Rail System features the exclusive CRL Wedge-Lock Securing System (U.S. Patents 6,434,905 and 6,912,818 B2. Canadian Patent 2,419,706). A totally new concept for securing the glass in the door rail. It works by applying pressure from the bottom of the door rail, using two glass retaining aluminum extrusions via a flat stainless steel bar. As this bar is pulled down with socket head cap bolts, pressure is applied to the glass retaining aluminum extrusions. The bottom of the extrusions are at an angle and fit into an angled groove in the door rail. As the glass retaining extrusions are being pulled down, the angled wedge in the door rail also pulls the glass retaining extrusions together. This action, along with our specially designed door retaining gasket, creates a tremendous amount of force (more than 900 pounds) in our 9 inch (228.6 millimeter) Corner Rail. That's 100 pounds per inch. Imagine how much force is created in our full length Door Rails!

  The Wedge-Lock Glass Securing System gives you more than a secure attachment to the glass. It provides the fastest installation time of any door rail system offered to the industry. Experienced installers can have a door prepared for installation in less than 10 minutes.


• Color: Polished Stainless
