Product Details:
- Designed for the "All Glass" Look
- For Use with 1/2" and 5/8" Tempered Glass
- Made of 316 Alloy Stainless Steel and Available in
Brushed Stainless and Polished Stainless Finishes
|

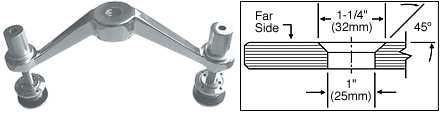

This CRL 2-Way 180° Regular-Duty Spider
Fitting is designed to mount to structural post or
frame members and transfer the loads to the structure. They make an
economical choice for most projects. Each Spider is supplied with
the countersunk swivel glass fastening fittings. Alternate glass
fasteners to accommodate heavier glass thicknesses are available
separately. Please Note: To determine whether Regular-Duty or
Heavy-Duty Spider Fittings are needed for you application, please
consult local building requirements and a licensed structural
engineer.
For additional assistance, contact us at .
SPECIFICATIONS:
For Use With: 1/2 to 5/8 Inch (12 to 16
millimeter) Glass
Glass Fabrication Required: One Inch (25
millimeter) Diameter Countersunk Hole Per Glass Fastening
Templates: Available on Request for Each
Fitting
Typical Applications:
- Malls
- Atriums
- Airports
- Museums
- All Glass Curtainwalls
- Color: Polished Stainless
