Product Details:

For Use With 3/8" and 1/2" (10 and 12 mm) Glass
1" (25 mm) Diameter Stainless Steel or Brass Tubing

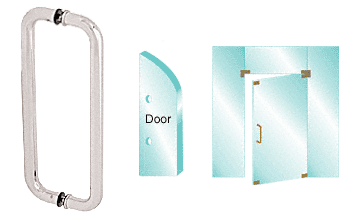

This CRL Glass Mounted Standard Pull Handle is available in three sizes and finishes.

Color: Polished Stainless
Minimum Order: 1 Each

Additional Product Information:
SPECIFICATIONS
Includes:
One Set CM12X12, CM18X18 or CM24X24 Pull Handles (back-to-back mounting)
Two Each Through Bolts for Glass Mounting
Four Each 1-1/4 Inch (32 millimeter) Diameter Matching Finish Metal Washers and Gaskets

For Use With:
3/8 Inch (10 millimeter) Glass
1/2 Inch (12 millimeter) Glass

Construction:
One Inch (25 millimeter) Diameter Stainless Steel or Brass Tubing

Glass Fabrication Required:
Two 5/8 Inch (16 millimeter) Diameter Holes
CM12X12 12 Inch (305 millimeter) Center-to-Center
CM18X18 18 Inch (457 millimeter) Center-to-Center
CM24X24 24 Inch (610 millimeter) Center-to-Center

For the thicker doors, please, use TB4CH bolt, which permits mounting of pulls to 1-3/4" (44.5 mm) thick, and in majority cases even up to 2" thick, aluminum, wood or hollow metal doors.
