Product Details:

For Use With 3/8" and 1/2" Glass
1" Diameter Solid Stainless Steel or Brass

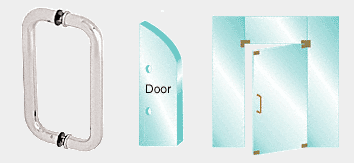

This CRL Glass Mounted Standard Pull Handle is available in several sizes and finishes.

Color: Polished Stainless

Minimum Order: 1 Each

Additional Product Information:
SPECIFICATIONS:
Includes:
One Set CS10X10 or CS12X12 Pull Handles (back-to-back mounting)
Two Each Through Bolts for Glass Mounting
Four Each 1-1/4 Inch (32 millimeter) Diameter Matching Finish Metal Washers and Gaskets

For Use With:
3/8 Inch (10 millimeter) Glass
1/2 Inch (12 millimeter) Glass

Construction:
One Inch (25 millimeter) Diameter Solid Stainless Steel or Brass
Glass Fabrication Required:
Two 5/8 Inch (16 millimeter) Diameter Holes
CS10X10 10 Inches (254 millimeters) Center-to-Center
CS12X12 12 Inches (305 millimeters) Center-to-Center

For the thicker doors, please, use TB4CH bolt, which permits mounting of pulls to 1-3/4" (44.5 mm) thick, and in majority cases even up to 2" thick, aluminum, wood or hollow metal doors.
