Category: CRL Oversized 90º Glass Clamp
CRL Polished Nickel Traditional Oversized 90 Degree Glass Clamp
SKU: GCB91PN
UPC:
Product Details:

For 5/16" to 1/2" (8 to 10 mm) Glass
Solid Brass
CRL Oversized 90 Degree Glass
Clamps are especially suggested for use in 1/2 inch
(12 millimeter) thick glass installations where a hole drilling
measurement of 1-1/2 times the glass thickness is required by the
Temperer (from the edge of the glass to the closet edge of the
hole). Includes wood screw for optional wall mounting
installation.
Color: Polished Nickel

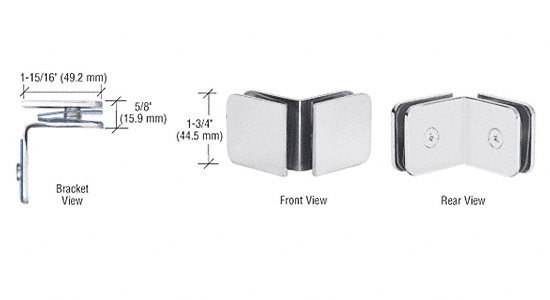

Width: 1-15/16 in (49.2 mm)
Height: 1-3/4 in (44.5 mm)
Minimum Order: 1 Each
Specifications:
Material: Solid Brass or Stainless Steel
Glass Thickness Range: 5/16 to 1/2 Inch (8 to 12 millimeter)
Includes: Gaskets and Wood Screw to be Used for Optional Wall
Mounting Application
An Additional Set of Gaskets is Required for 5/16 Inch (8
millimeter) Glass
