Product Details:
- Matches Configuration of Geneva, Concord, Vienna and
Cardiff Series Hinges
- Solid Brass
- For 5/16" to 1/2" (8 to 12 mm) Glass
|

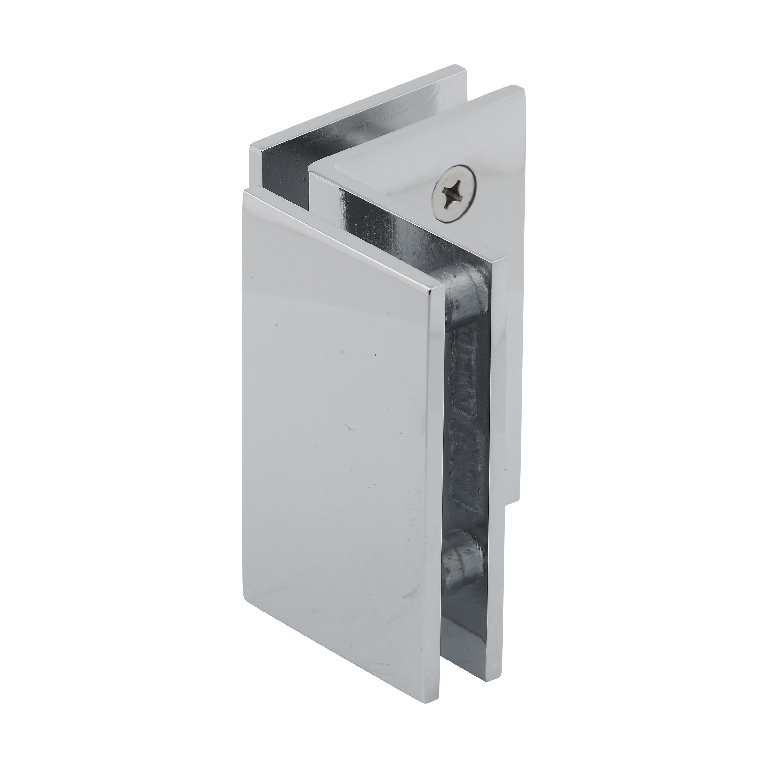

CRL Geneva Series 90 Degree Glass-to-Glass
clamps are designed for 5/16 to 1/2 inch (8 to 12
millimeter) thick glass projects. The two mounting screws per panel
matches the configuration of many of our most popular hinge series.
Continuity of design is maintained by matching the look of the
hinges used. They feature square corners and edges in several
decorator finishes and are constructed of solid brass.
Specifications:
- Glass Thickness: 5/16 to 1/2 inch (8 to 12 millimeter) Tempered
Safety Glass
- Construction: Solid Brass
- Holes Required: Two 3/4 inch (19 millimeter) Diameter
Holes
- Includes: Gaskets
Custom finishes are available on request by contacting us Shower
Door Department by
e-mail or by calling Toll Free at (888) 663-9830 extension
7740.
