Product Details:

Profiles for Fixed Panels and Swinging Doors
Available in Many Finishes
95" Stock Lengths

We offer three profiles of CRL Aluminum U-channels for shower door installations. The fixed panel Regular and Deep U-Channels are for securing fixed panels of glass to the wall, ceiling or floor. The U-Channel with Wipe is ideal for waterproofing the bottom of the door. Wipe is dual durometer translucent vinyl that can be trimmed for exact fit. Widths suitable for 3/8 and 1/2 inch (9 and 12 millimeter) glass are available in each style and are individually wrapped to protect the finish.
Use our 99AS Aquarium Silicone to secure the glass.

Color: Polished Copper

Thickness: .080 in
Length:       95 in

Minimum Order: 1 Each

Additional Product Information:

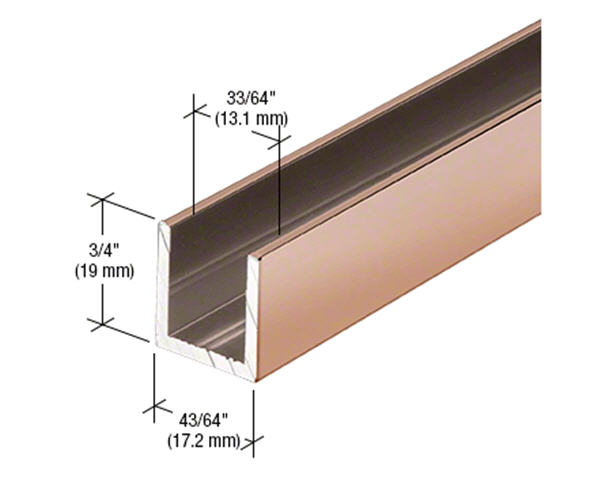

This 3/4 inch (19.1 millimeter) high profile CRL Deep U-Channel can be used as the top channel in installations where the glass must be inserted into the top channel, then lowered into the Regular U-Channel.
