Product Details:
Adjustable to Any Angle Up to 90 Degrees without Removing Door
Available in Many Beautiful Finishes
Use Monolithic Tempered Glass

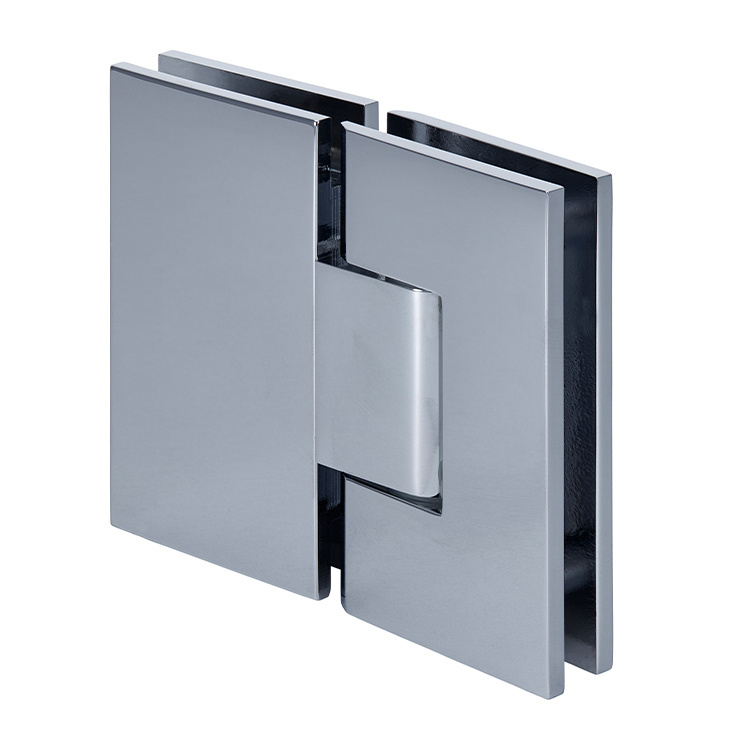

The CRL Adjustable Vienna Series has taken our
popular Vienna Hinge to a new level. Adjustment to accommodate the
desired angle (up to 90 degrees) is done after the door is hung.
Simply loosen the Allen set screws and turn the door to the desired
closed position. By merely tightening the Allen screws your door
will self-center to the desired closed position. The door can swing
90 degrees inward and 90 degrees outward (adjusting angle from
factory set position will reduce 90 degree swing in that
direction). For doors pulling outwards only (using a clear door
jamb), you can adjust the hinge to close 5 degrees inside the
shower area, thus having the door close snugly against the
jamb.
Color: Polished Chrome
Minimum Order: 1 Each
Additional Product Information:
Using two hinges with 3/8 or 1/2 inch glass (10 or 12 millimeters)
the hinge will hold up to 110 pounds (50 kilograms) with a maximum
width of 36 inches (914 millimeters).
Using three hinges with 3/8 or 1/2 inch glass (10 or 12
millimeters) the hinge will hold up to 140 pounds (50 kilograms)
with a maximum width of 36 inches (914 millimeters).
Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered
Safety Glass
Construction: Solid Brass
Fabrication Requirements: Optional Square or "Mouse Ears"
Cut-out
Includes: One Hinge, Gaskets, Screws and Template
