Designed for 1/4" to 5/16" (6 to 8 mm) Glass
Available in Chrome and Brass Finishes
One 9/16" (14 mm) Hole Required

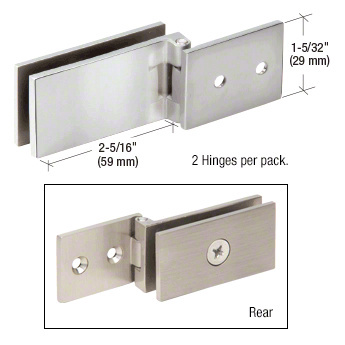

These CRL Light Duty Frameless Shower Door Hinges were designed for use in small single door shower stalls where the frameless look is desired. These Light Duty Hinges are also an excellent choice in many cabinet applications. They are available in two styles, Square Corner or Half-Round and will accommodate 1/4 to 5/16 inch (6 to 8 millimeter) glass. Available in both chrome and brass finishes, they are free-swinging hinges with a 180° out swing.

Color: Chrome

Minimum Order: 1 Package (Two hinges per pack.)

Additional Product Information:
Glass Thickness: 1/4 to 5/16 Inch (6 to 8 millimeter)
Construction: Brass
Closing Type: Free Swinging
Cut-Out: 9/16 Inch (14 millimeter) Hole (No Cut-Out)
Includes: Gaskets

The maximum recommended door width is 24 inches (610 millimeters) and maximum weight should not exceed 50 pounds (22.7 kilograms).

Important Note:
Using two hinges and 1/4 or 5/16 inch (6 or 8 millimeter) glass the maximum door width recommended is 24 inches (610 millimeters) and 50 pounds (23 kilograms).
Cut-out dimensions for CRL hinges may not match those of other brands.
