Category: CRL Essence Sliding Headerless Rolling Shower Door System

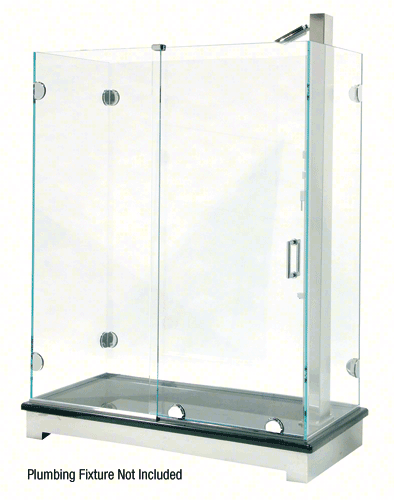

CRL Polished Chrome Essence Series Basic Square Cornered Roller Style Sliding Door Kit
SKU: ESS3CH
UPC:
$750.94
(20% off)
$625.78
Product Details:
•Headerless System Offers Frameless Look Both Vertically and
Horizontally
•Bottom Rolling System has Integrated Height Adjustment
•Rollers Include Anti-Derail/Anti-Pinch Features
•For Use with Only 1/2" (12 mm) Thick Tempered Safety
Glass
•Stocked in Four Popular Finishes
The CRL Essence Series Basic Sliding Door Kit with
Squared Corner Rollers is a headerless system that offers a
frameless appearance both vertically and horizontally. Smooth and
quiet operation is the cornerstone of the Essence Series. Water
management is achieved horizontally via the use of the bottom
track, and vertically with the use of our DK98L Clear Seal. The
anti-derail/anti-pinch guard features of the curved shaped bottom
rollers make them unique. The Essence Series is for use with only
1/2" (12 mm) thick tempered safety glass (not included).
Stocked in four popular finishes.
Color: Polished Chrome
How To Order:
For 180 Degree Wall-to-Wall Installation: Order
basic ESS1 or ESS3 kit in your choice of finish. Order two each
CL90S (rounded) or GE90S (square) wall mount brackets. Order your
choice of handle or knob, and any other accessories you may want
for the enclosure.
For 90 Degree Return Panel Installation: Order
basic ESS1 or ESS3 kit in your choice of finish. Order two each
CL90S (rounded) or GE90S (square) wall mount brackets, plus two
each CL090 (rounded) or GE090 (square) 90 degree Glass-to-Glass
Brackets. Order your choice of handle or knob, and any other
accessories you may want for the enclosure.
Specifications:
Glass Thickness Range: 1/2" (12mm) Tempered Safety Glass (Not
Included)
Material: Rollers and Top Guide Constructed of Solid Brass; Bottom
Sliding Track and U-Channel Constructed of Aluminum; Clear Plastic
L-Jamb
Maximum Door Size: Do Not Exceed Either 34" (864mm) Wide or 127 Lbs
(57.6 kg)
Basic Kit Fabrication: Notch Required for Bottom Rollers, Holes
Required for Top Guide
Basic ESS1 and ESS3 Kits Include:
Two (2) pcs - Bottom Rollers
One (1) pc Ea. - Spanner Wrench for Roller Adjustment, Top Door
Guide, 64" (1.63m) Bottom Track, 98" (2.49m) U-Channel, 98" (2.49m)
Plastic L-Seal, SDCEC12 End Cap for Channel, M6164 Shower Door
Bumper, 1" (25.4mm) Long Drain Piece for Track, 1/16" (1.6mm)
Neoprene Setting Block
Note: Glass Brackets, Handle or Knob, and Other
Accessories Sold Separately
