Product Details:

For 5/16" to 1/2" (8 to 12 mm) Thick Glass
Mounts to Ceiling
Solid Brass
Assists With Shear Forces
Holds Glass Panels in Position While Sealant Cures

CRL Sleeve-Over Glass Clamps were designed with two purposes in mind. The first is to provide a mechanical fastener to assist with shear forces placed on the glass panels. The second is to provide a securing clamp that would hold the glass panels in position while the sealant applied in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep panels from separating). Clamps are secured in place by a nylon tipped Allen screw.

Color:   Polished Chrome

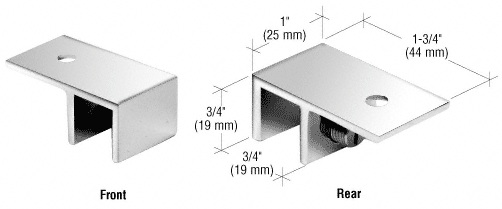

Width:  1 in (25 mm)
Height: 3/4 in (19 mm)

Minimum Order: 1 Each

Important Note::
These Clamps are not designed to take the place of Headers or a Support Bar.
