Product Details:
- Mounts to Bar Only
- Ready to Install
- Three Architectural Finishes
|

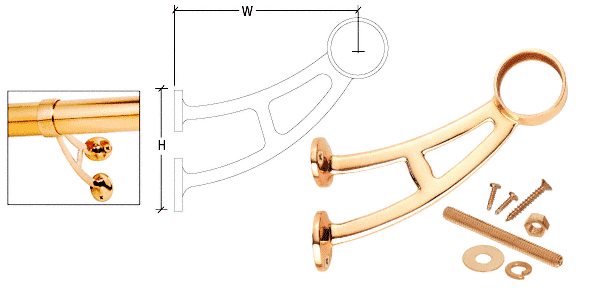

CRL Combination Brackets for Foot
Railings are available in three architectural
finishes for 1-1/2 inch (38.1 millimeter) or 2 inch (50.8
millimeter) Tubing. Brackets are individually packed and come with
two #12 x 3/4 inch (19 millimeter) and one #12 x 2 inch (50.8
millimeter) long Phillips Flat Head Wood Screws, one 5/16 - 18 x 3
inch (76.2 millimeter) long All Thread, one 7/8 inch (22.2
millimeter) diameter Washer, one Spring Lock Washer, and one 5/16
inch (7.9 millimeter) Hex Nut. Tubing is secured with integral set
screw included. NOTE: Recommended maximum spacing of Foot Railing
Brackets is 48 inch (1219 millimeter). For heavy use, steel inserts
should be used for added strength. Contact us for details.
