Category: CRL Glass Mounted Ladder Style Pull Handle with Undercut Accent Rings

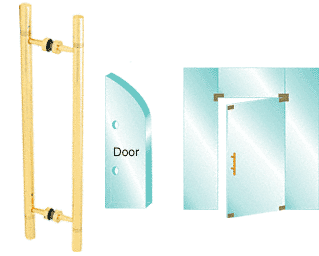

CRL Polished Brass PVD Plated 25" Glass Mounted Laddy Style Pull Handle with Undercut Accent Rings
SKU: CT18x18BR
UPC:
$375.46
(20% off)
$312.88
Product Details:
For Use With: 3/8" and 1/2" (10 and 12 mm) Glass
Construction: 1" (25.4 mm) Diameter Stainless Steel With
Polished Brass PVD Coating
Mounting Holes are 18" (457 mm) Center-to-Center
This CRL Glass Mounted Ladder Style Pull Handle With
Undercut Accent Rings is available in several
finishes.
Color: Brass PVD Coating
Overall Handle Length: 25 in (635 mm)
Hole Locations: 18 in (457 mm) Center-to-Center
Tread Type: #8 X 1.25 PITCH
Minimum Order: 1 Each
Additional Product Information:
SPECIFICATIONS
Includes:
One Set CT18X18 Pull Handles (back-to-back mounting)
Two Each Through Bolts for Glass Mounting
Four Each 1-1/4 Inch (32 millimeter) Diameter Matching Metal Finish
Washers and Rubber Gaskets
For Use With:
1/8 Inch (10 millimeter) Glass
1/2 Inch (12 millimeter) Glass
Construction:
One Inch (25 millimeter) Diameter Stainless Steel Tubing
Glass Fabrication Required:
Two 5/8 Inch (16 millimeter) Diameter Holes 18 Inches (457
millimeter) Center-to-Center
For the thicker doors, please, use
TB4CH bolt, which permits mounting of pulls to 1-3/4"
(44.5 mm) thick, and in majority cases even up to 2"
thick, aluminum, wood or hollow metal doors.
