Category: CRL 90 Degree Hydroslide Wall-to-Glass Accessory Kit
CRL Polished Brass Hydroslide 90 Degree Wall-to-Glass Sliding Shower Door Accessory Kit
SKU: HYDA9BR
UPC:
$135.31
(20% off)
$112.76
Product Details:

Excellent Design for Compact Areas
Clean Sleek Lines
Quick and Easy Installation
Available in Four Finishes
Accommodates a Wide Range of Shower Designs
Patent Pending

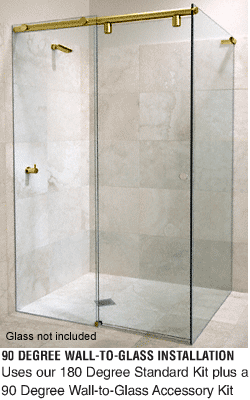

90 Degree Wall-to-Glass Installation Uses our
180 Degree Standard
Kit plus a 90 Degree Wall-to-Glass Accessory Kit.
CRL Hydroslide Sliding Shower Door Shower screen
Kits were designed for full standing showers or above
bathtubs. The Hydroslide System can accommodate a wide range of
shower designs with fixed glass panels on either end, or both sides
at 90 or 180 degrees. The Hydroslide System also accommodates the
option of floor-to-near-ceiling glass panels with a sliding door.
CRL Hydroslide Sliding Shower Door Kits feature the latest European
'all-glass' look. Kits are available in either 60 or 84 inch (1524
or 2134 millimeter) widths. Installers can cut the width to size,
and height is optional as long as the sliding door glass weighs
less than 88 pounds (40 kilograms).
The 180 Degree Wall-to-Wall Installation only requires the 180
Degree Standard Kit for the installation. Individual or replacement
parts can also be ordered. Bottom Glass Attachments, Thresholds,
and Handles or Knobs must be ordered separately. CRL Hydroslide
Kits come in four finishes; Chrome Fittings with a Brite Anodized
Sliding track, polished Brass with a Brite Gold Anodized Sliding
track, Brushed Nickel with Brushed Nickel Anodized Sliding Track,
and Oil Rubbed Bronze Anodized Sliding Track. Each Kit comes with
complete fabrication and installation instructions.
90 Degree Wall-to-Glass Accessory Kit consists of: One 90 Degree
Glass-to-sliding Track Connector, and One 90 Degree Wall-to-Glass
Bracket.
90 Degree Wall-to-Glass Installation Uses our
180 Degree Standard
Kit plus a 90 Degree Wall-to-Glass Accessory Kit.
Color: Polished Brass
Additional Product Information:
SPECIFICATIONS
Glass Thickness Range: 5/16 to 3/8 inch (8 to 10 millimeter)
Tempered Safety Glass (NOT INCLUDED)
Materials: Plated or Lacquered Solid Brass Fittings; Anodized
Aluminum Sliding Door Track
Maximum Door Weight: 88 pounds (40 kilograms)
Fabrication: Holes required in fixed panel and door
Includes: Gaskets, Screws, and Glass Fabrication Information
