CRL Polished Brass Finish Wall Mounted Transom Patch with INT300 Insert
C.R. Laurence CRL Polished Brass Finish Wall Mounted Transom Patch with INT300 Insert | PH34BR
Category: Wall Mounted Transom Patch with 1NT300 Insert
CRL Polished Brass Finish Wall Mounted Transom Patch with INT300 Insert
SKU: PH34BR
UPC:

$85.85 (20% off)

$71.54

Product Details:

For 3/8" or 1/2" (10 or 12 mm) Glass

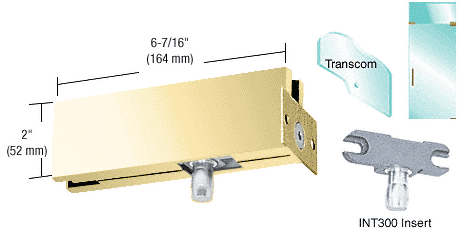

The CRL PH34 Wall Mounted Transom Patch is used to support a transom from a side jamb. It includes the INT300 Insert for mounting a door with the CRL PH20A or PH21A Top Door Patch Fitting. The Insert can also be moved on the non-hinged side, allowing for a double swing door. A INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also a INT305 Transom Patch Keeper Insert can be installed for use with an AMR205 Lock when used for top of the door installation.


Color: Polished Brass
Minimum Order: 1 Each

Additional Product Information:
Glass Fabrication Required: One 3/4 inch (19 millimeter) Diameter Hole and Corner Notch.
Important Note:
If the weight of the transom exceeds 100 pounds (45.4 kilograms) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight.
