Category: CRL Top Door Patch Fitting with Insert No. 1NT304

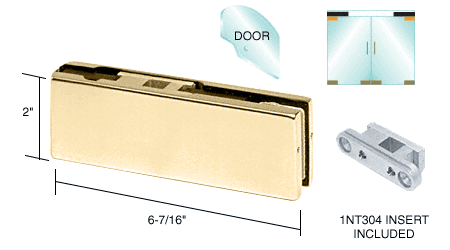

CRL Polished Brass Finish Top Door Patch Fitting with INT304 Insert
SKU: PH21BBR
UPC:
$126.36
(20% off)
$105.30
Product Details:

European 2-9/16" (65 mm) Pivot Setback
High Density Cast Body
Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
The CRL Top Door Patch Fitting includes the 1NT304
Insert for use with our Overhead Concealed Door Closers that have a
9/16 inch (14 millimeter) square and 3/4 inch (19 millimeter) long
spindle. Finished covers are available in four standard finishes.
Gaskets are supplied that allow this Patch Fitting to be used with
either 3/8 or 1/2 inch (10 or 12 millimeter) Glass.
Color: Polished Brass
Minimum Order: 1 Each
Additional Product Information:
Glass Fabrication Required: One 3/4 inch (19 millimeter) diameter
hole and corner notch.
Important Note:
THE FOLLOWING GUIDELINES ARE TO BE USED WHEN MAKING A DOOR USING
THIS HARDWARE:
MAXIMUM HEIGHT: 108" (2744MM)
MAXIMUM WEIGHT: 176 LBS (80KG)
MAXIMUM WIDTH: 43" (1100MM)
IF THE DOOR EXCEEDS ANY OF THESE LIMITATIONS FULL DOOR RAILS SHOULD
BE USED.
