Category: Right Hand Sidelite Mounted Transom Patch with Support Fin Bracket and 1NT300 Insert

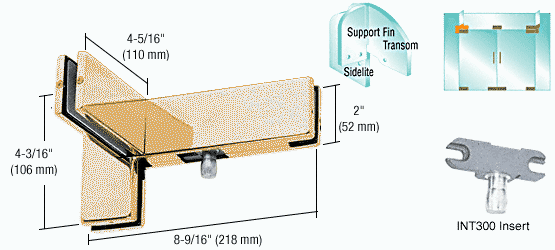

CRL Polished Brass Finish Right Hand Sidelite Transom Patch with Support Fin Bracket and INT300 Insert
SKU: PH41RBR
UPC:
$174.36
(20% off)
$145.30
Product Details:

For 3/8" or 1/2" (10 or 12 mm) Glass
The CRL Right Hand Sidelite Mounted Transom Patch with
Support Fin Bracket is used to support a transom from a
sidelite glass panel. It comes with a INT300 Insert for mounting a
door with a CRL PH20A or PH21A Top Door Patch Fitting. For single
doors, the insert can be removed on the non-hinged side allowing
for a double swinging door. A INT306 Transom Patch Door Stop Insert
can be used to create a one way door. Also, a INT305 Transom Patch
Keeper Insert can be installed for use with an AMR205 Lock when
used for a top of the door installation. The support fin glass
should be sized in accordance with approved design criteria (refer
to GANA or Manufacturers Manual) and secured to the ceiling with a
PH92 Ceiling Mounted Support Fin Bracket.
Color: Polished Brass
Minimum Order: 1 Each
Additional Product Information:
Glass Fabrication Required: Five 3/4 inch (19 millimeter) Diameter
Holes and Two Corner Notches.
Important Note:
If the weight of the transom exceeds 100 pounds (45.4 kilograms)
the transom must be supported from the ceiling. This is to prevent
the Patches from slipping from too much weight.
