Product Details:

High Density Cast Body with Lock Mechanism
Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass

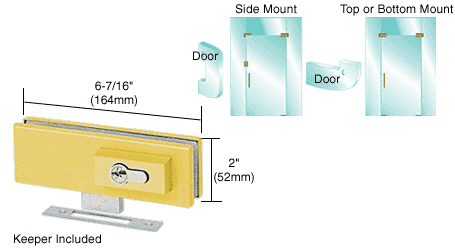

The CRL European Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the EUR206 Sidelite Mount Keeper. Optional "Easy Clean" Bottom Keeper EUR208 is available to accommodate most types of installations.


Color: Polished Brass

Minimum Order: 1 Each

Additional Product Information:
Glass Fabrication Required:
Top or Bottom Mount: One Corner Notch
Side Mount: U-Cutout
Important Note:
If used as other than a corner mount, the closed end lips of the Cover Plates need to be trimmed back.
