Product Details:
- Typically Used as the Base Channel for Glass Railing
Systems Requiring a Flush Installation Embedded in
Concrete
- We Will Custom Drill to Your
Specifications
- Custom Cutting and Mitering Service
|

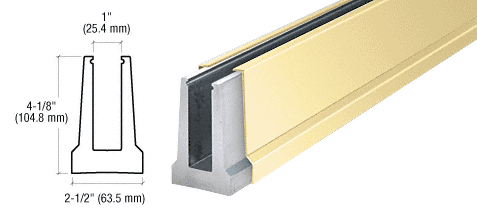

The CRL B5T Tapered Base Shoe is
typically used as the base channel for glass railing systems. It
can be clad in several choices of architectural finishes. The most
critical component in a railing system is the proper attachment of
the Base Shoe to the substrate. CRL has engineered and tested a
variety of attachment methods, and has developed an acceptable
combination of drilling patterns and fasteners. A printed brochure
with Instructions, Installation Hints, Cleaning, and Refinishing
techniques is available. NOTE: 120 inch (3.05 meter) and 240 inch
(6.10 meter) Extrusion Only without(holes) cannot be used for the
GlassWedge® Dry Glaze System unless the Base Shoe is
fabricated to the above tested and approved hole and counter bore
pattern. The GlassWedge® D ry Glaze System requires that the
attachment holes be counter bored so that no part of the fastener
protrudes above the base of the channel opening.
SHIPPING NOTE: Due to the difficulty in packaging and handling 240
inches (6.10 meters) stock lengths, it is suggested that you Will
Call these at any of our distribution centers. If requiring
shipment, all packaging and handling concerns must be agreed to by
CRL and the customer prior to shipping. All shipping arrangements
will be documented on your quotation for your signed approval.
