Category: CRL Glass Mounted Ladder Style Pull Handle with Acrylic Full Inserts

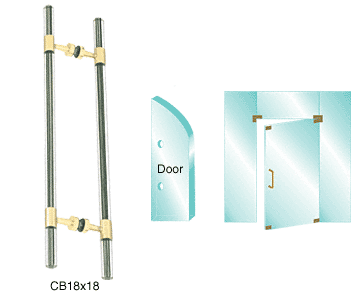

CRL Polished Brass 27" Overall Length Glass Mounted Ladder Style Pull With Acrylic Full Inserts
SKU: CB18x18BR
UPC:
$508.10
(20% off)
$423.42
Product Details:
For Use With: 3/8" and 1/2" (10 and 12 mm) Glass
1" (25 mm) Diameter Stainless Steel With Polished Brass PVD
Coating With Acrylic Full Insert (Black Accent Lines in
Acrylic)
Our CRL Glass Mounted Ladder Style Pull With Acrylic Full
Inserts are available in two finishes.
Color: Brass PVD Coating
Minimum Order: 1 Each
Additional Product Information:
SPECIFICATIONS
Includes:
One Set CB18X18 Pull Handles (back-to-back mounting)
Two Each Through Bolts for Glass Mounting
Four Each 1-1/4 Inch (32 millimeter) Diameter Matching Finish Metal
Washers and Gaskets
For Use With:
3/8 Inch (10 millimeter) Glass
1/2 Inch (12 millimeter) Glass
Construction:
One Inch (25 millimeter) Diameter Stainless Steel Tubing with
Acrylic Full Insert
Glass Fabrication Required:
Two 5/8 Inch (16 millimeter) Diameter Holes 18 Inches (457.2
millimeter) Center-to-Center
For the thicker doors, please, use
TB4CH bolt, which permits mounting of pulls to 1-3/4"
(44.5 mm) thick, and in majority cases even up to 2"
thick, aluminum, wood or hollow metal doors.
