Product Details:
For Use With 3/8" and 1/2" (10 and 12 mm) Glass
1" (25 mm) Diameter Stainless Steel or Brass Tubing
Available in Several Architectural Finishes

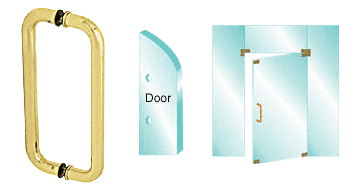

This CRL Glass Mounted Standard Pull Handle is
available in three sizes and in many different architectural
finishes.
Color: Brass
Minimum Order: 1 Each
Additional Product Information:
Includes:
One Set CM12X12 Pull Handles
(back-to-back mounting)
Two Each Through Bolts for Glass Mounting
Four Each 1-1/4 Inch (32 millimeter) Diameter Matching Finish Metal
Washers and Gaskets
For Use With:
3/8 Inch (10 millimeter) Glass
1/2 Inch (12 millimeter) Glass
Construction:
One Inch (25 millimeter) Diameter Stainless Steel or Brass
Tubing
Glass Fabrication Required:
Two 5/8 Inch (16 millimeter) Diameter Holes
CM12X12 12 Inches (305 millimeters) Center-to-Center
For the thicker doors, please, use
TB4CH bolt, which permits mounting of pulls to 1-3/4"
(44.5 mm) thick, and in majority cases even up to 2"
thick, aluminum, wood or hollow metal doors.
