Category: 10" Door Rails for 1/2" Glass With Lock
CRL Polished Brass 10" Square Single Door Rail With Lock for 1/2" Glass - Custom Length
SKU: LHR10SPB12CL
UPC:
Product Details:
- Exclusive CRL Wedge-Lock Dry Glazed Glass Securing
System for Rapid Installations and Steadfast Holding
Power
- Notching of Glass Not Required
Dry Glazing Allows Field Glass Replacement
- Doors Can Be Ready for Installation in Less Than 10
Minutes
|

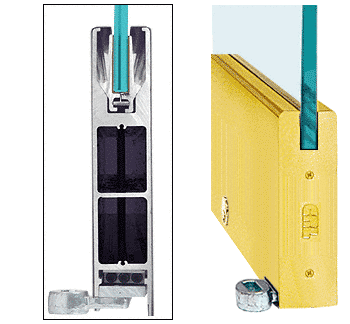

An innovative new glass entrance system, the CRL
Wedge-Lock Door Rail System features the exclusive
CRL Wedge-Lock Securing System (Patent Pending), a totally new
concept for securing the glass in the door rail. It works by
applying pressure from the bottom of the door rail, using two glass
retaining aluminum extrusions via a flat stainless steel bar. As
this bar is pulled down with socket head cap bolts, pressure is
applied to the glass retaining aluminum extrusions. The bottom of
the extrusions are at an angle and fit into an angled groove in the
door rail. As the glass retaining extrusions are being pulled down,
the angled wedge in the door rail also pulls the glass retaining
extrusions together. This action, along with our specially designed
door retaining gasket, creates a tremendous amount of force (more
than 900 pounds) in our nine inch (228.6 millimeter) Corner Rail.
That's 100 pounds per inch. Imagine how much force is created in
our full length Door Rails! The Wedge-Lock Glass Securing System
gives you more than a secure attachment to the glass. It provides
the fastest installation time of any door rail system offered to
the industry. Experienced installers can have a door prepared for
installation in less than 10 minutes.
Wedge-Lock Door Rails come completely
fabricated and ready to install right out of the carton with the
End Caps installed. After the rail is installed, the only thing
required before hanging the door is to attach the door arm or pivot
(not included) to the adjustable door alignment slide already
assembled in the Door Rail. The Adjustable Door Alignment System
feature allows you to adjust the door 1/8 inch (3.2 millimeter)
toward or away from the jamb without removing the door. This is
standard on both top and bottom rails.
After the door is installed all you need do to adjust the door is
to remove the End Cap. This will reveal three socket head cap
bolts. The center bolt is the securing bolt used to lock the
adjustable slide in position. The two outer bolts are used to
adjust the slide 1/8 inch (3.2 millimeter) in or out. The low
profile of the adjustable slide allows the pivots with slotted
grooves to be moved to a position other than the American Standard
Setback of 2-3/4 inches (69.8 millimeter). This means we can
fabricate them for vertically out-of-square openings.
Other reasons to choose Wedge-Lock Door Rails: Models are available
to accept 1/2 inch (12 millimeter) or 3/8 inch (10 millimeter)
glass; a rigid single component housing that will not shift and
fall out of adjustment over time because it is not made up of two
halves; the internal components do not require removal before
installation; the glass securing pads are designed for longevity in
extreme environments. Note: All Wedge-Lock Door Rails feature the
built-in Jamb Alignment Block, but arms and pivots must be ordered
separately to meet job requirements.
CRL Wedge-Lock Door Rails come in five
standard finishes, and can be quoted in custom finishes and widths
upon request. Rail Specifications, Templates and Hardware Packages
are available from us . Call (888) 663-9830, Extension 777 for
information, or e-mail us at .
Comes standard with Jamb Alignment Block. Arms and Pivots must be
ordered separately to meet job requirements.
