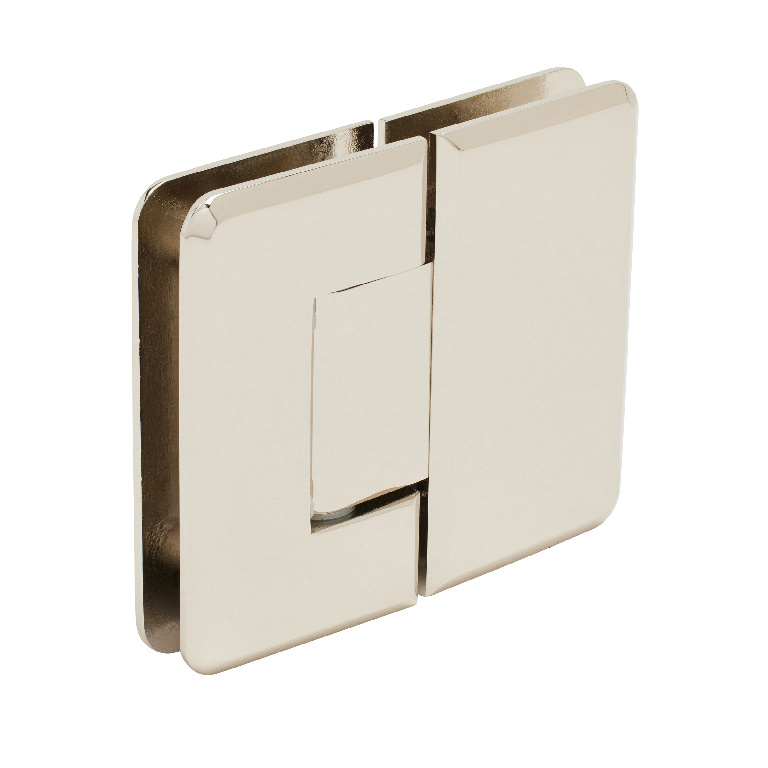

CRL Pinnacle 580 Series Polished Nickel 180º Glass-To-Glass Hinge with 5º Offset
CRL Pinnacle 580 Series Polished Nickel 180º Glass-To-Glass Hinge with 5º Offset | P1N580PN
Category: CRL Pinnacle 580 5º Pre-Set Glass-to-Glass Hinge
CRL Pinnacle 580 Series Polished Nickel 180º Glass-To-Glass Hinge with 5º Offset
SKU: P1N580PN
UPC:

$138.24 (20% off)

$115.20

Product Details:

Factory Set for 5° Offset Closure
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass

The CRL Pinnacle Series of professional hinges is able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. A variety of 10 styles, including Wall Mount and Glass-to-Glass types, gives design flexibility. They are made of solid brass with all moving parts (pins and springs) in stainless steel. Pinnacle Hinges are self-centering, and contain a Reversible 5º Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off angle" installations.

Color:Polished Nickel

Minimum Order: 1 Each

Additional Product Information:
Standard Reversible Pivot Pin: Each Pinnacle Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90º. The opposite side is marked 85º. Standard Pinnacle Hinges come with the 90º side activated. Offset Models come with the Pin pre-set to 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
