Category: CRL Pinnacle 580 5º Pre-Set Glass-to-Glass Hinge

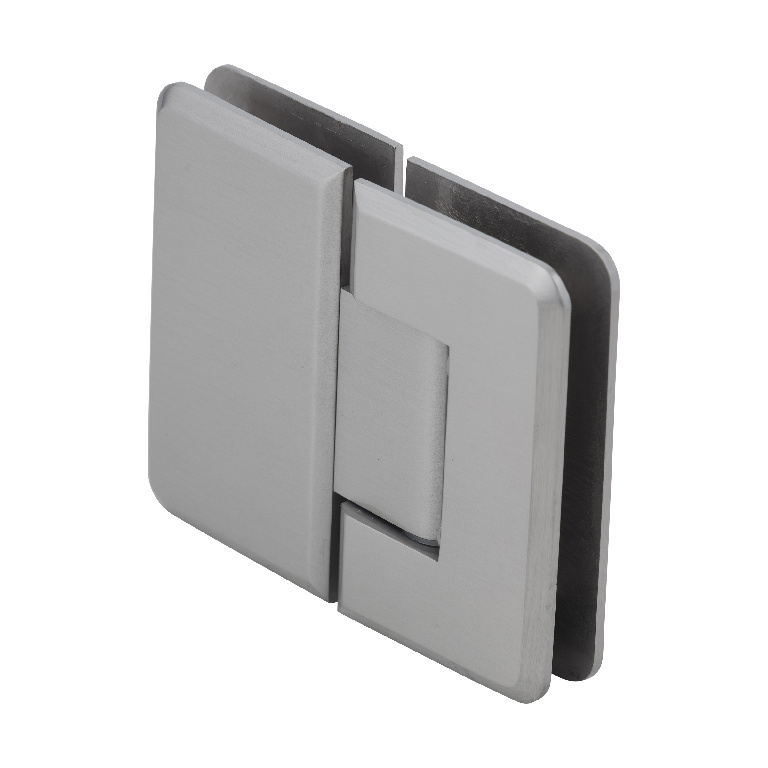

CRL Pinnacle 580 Series Brushed Nickel 180º Glass-To-Glass Hinge with 5º Offset
SKU: P1N580BN
UPC:
$127.91
(20% off)
$106.59
Product Details:

Factory Set for 5° Offset Closure
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass
The
CRL Pinnacle Series of professional hinges is
able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. A
variety of 10 styles, including Wall Mount and Glass-to-Glass
types, gives design flexibility. They are made of solid brass with
all moving parts (pins and springs) in stainless steel. Pinnacle
Hinges are self-centering, and contain a Reversible 5º Pivot Pin.
In addition, Custom Pivot Pins are available to accommodate
"off angle" installations.
Color: Brushed Nickel
Minimum Order: 1 Each
Additional Product Information:
Standard Reversible Pivot Pin: Each Pinnacle Hinge
contains a Reversible Pivot Pin. One side of the Pin is marked 90º.
The opposite side is marked 85º. Standard Pinnacle Hinges come with
the 90º side activated. Offset Models come with the Pin pre-set to
85º (5º tighter closure into shower interior). The Pin can be
rotated (not flipped upside down) to activate the other side.
Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered
Safety Glass
Construction: Solid Brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
