Category: CRL Pinnacle 380 Adjustable 180º Glass-to-Glass Hinge

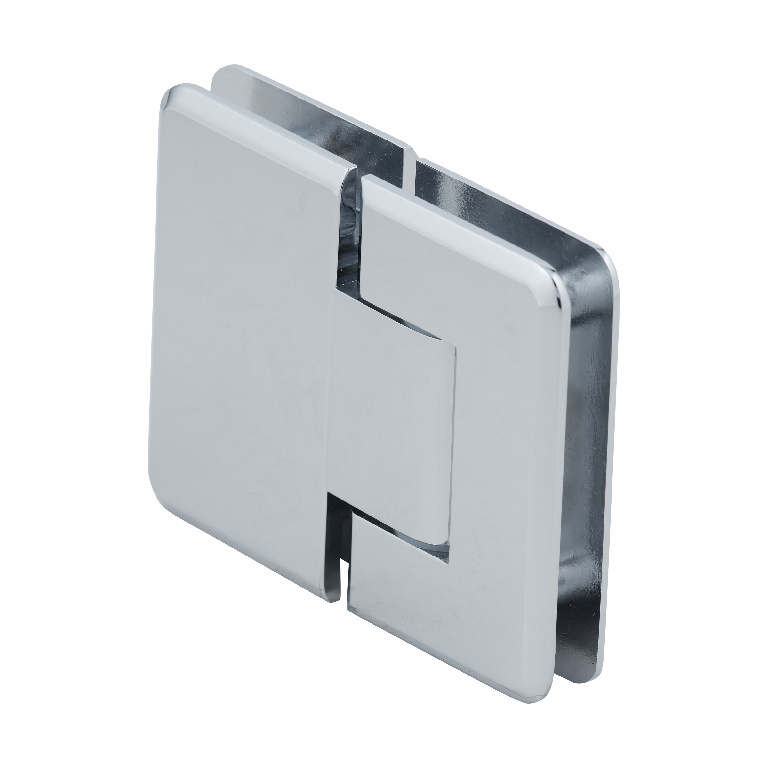

CRL Pinnacle 380 Series Polished Chrome Adjustable 180° Glass-to-Glass Hinge
SKU: P1N380CH
UPC:
$150.89
(20% off)
$125.74
Product Details:

Adjustable to Any Angle Up To 90° Without
Removing Door
Available in Several Beautiful Finishes
Adjustable 180 Degree Glass-to-Glass
The
CRL Pinnacle Adjustable Series of professional
hinges is able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter)
tempered safety glass. A variety of two styles, Wall Mount and
Glass-to-Glass types, gives design flexibility and allows the
designer/installer to create custom enclosures limited only by
their imagination. The Pinnacle Adjustable Series has taken our
popular Pinnacle Series to a new level. Adjustment to accommodate
the angle desired (up to 90°) is done after the door is installed.
Once the door is hung, simply loosen the allen screws and turn the
door to the desired closed position. By merely tightening the allen
screws, your door will close precisely to 0°. The door can swing
90° inward and also 90° outward (adjusting angle from factory set
position will reduce 90° swing in that direction). For doors
pulling outwards only (using a clear door jamb), you can adjust the
hinge to close 5° inside the shower area, thus having the door
close snugly against the jamb.
Color: Polished Chrome
Minimum Order: 1 Each
Additional Product Information:
Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered
Safety Glass
Special Feature: Adjustable to any angle up to 90° without having
to take door down
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Precise closing at 0°
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
