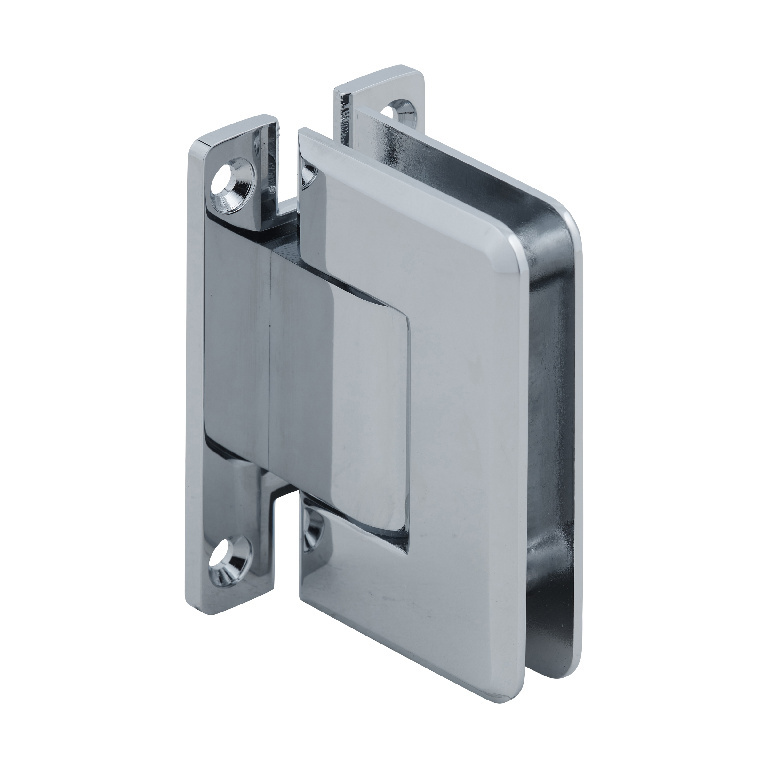

CRL Pinnacle 337 Series Polished Chrome Adjustable Wall Mount Full Back Plate Hinge
CRL Pinnacle 337 Series Polished Chrome Adjustable Wall Mount Full Back Plate Hinge | P1N337CH
Category: CRL Pinnacle Series Adjustable Wall Mount Hinges
CRL Pinnacle 337 Series Polished Chrome Adjustable Wall Mount Full Back Plate Hinge
SKU: P1N337CH
UPC:

$92.28 (20% off)

$76.90

Product Details:

Adjustable to Any Angle Up To 90° Without Removing Door
Available in Several Beautiful Finishes
Adjustable Wall Mount 'H' Back Plate

The CRL Pinnacle Adjustable Series of professional hinges is able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) tempered safety glass. A variety of two styles, Wall Mount and Glass-to-Glass types, gives design flexibility and allows the designer/installer to create custom enclosures limited only by their imagination. The Pinnacle Adjustable Series has taken our popular Pinnacle Series to a new level. Adjustment to accommodate the angle desired (up to 90°) is done after the door is installed. Once the door is hung, simply loosen the allen screws and turn the door to the desired closed position. By merely tightening the allen screws, your door will close precisely to 0°. The door can swing 90° inward and also 90° outward (adjusting angle from factory set position will reduce 90° swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5° inside the shower area, thus having the door close snugly against the jamb.

Color: Polished Chrome

Minimum Order: 1 Each

Additional Product Information:
Specifications:

Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered Safety Glass
Special Feature: Adjustable to any angle up to 90° without having to take door down
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Precise closing at 0°
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
