Category: CRL Pinnacle Series Glass-to-Glass Mount Hinges

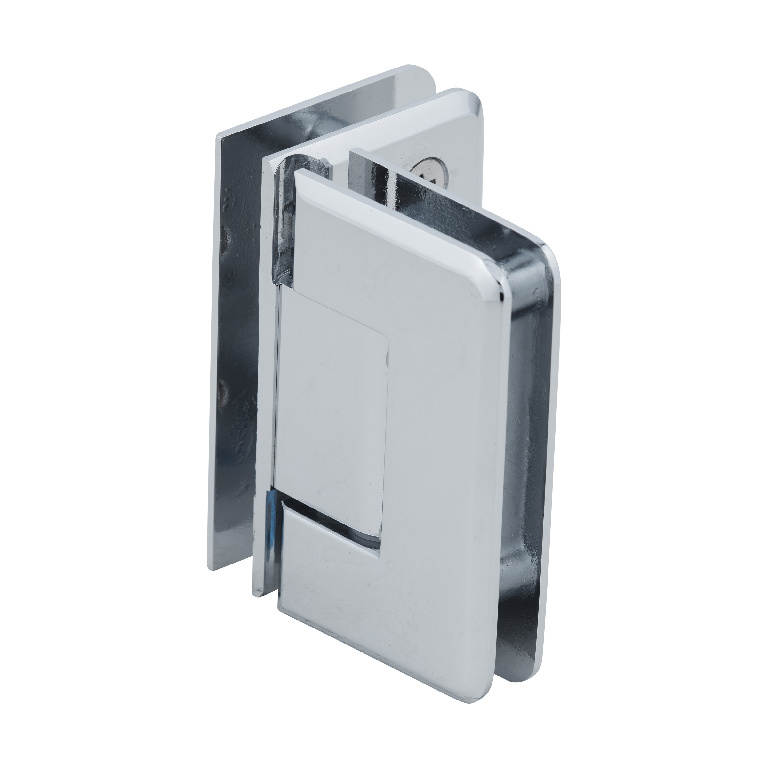

CRL Pinnacle 092 Series Polished Chrome 90° Glass-To-Glass Hinge
SKU: P1N092CH
UPC:
$130.94
(20% off)
$109.12
Product Details:

New Model Eliminates Small End Plate Covering
Hinge on Edge of Fixed Panel
Requires Holes in Fixed Panel and Cut-Out in Door
Use Monolithic Tempered Glass
The new style
CRL Pinnacle 092 Series 90° Glass-to- Glass
Hinge replaces the old style Pinnacle 090 Series 90°
Glass-to-Glass Hinge which required a cut-out in both the door and
the fixed panel. This new style requires only two holes (per hinge)
in the fixed panel, and a cut-out in the door.
Color: Polished Chrome
Minimum Order: 1 Each
Additional Product Information:
After installation of the old style Pinnacle a small end plate was
adhered to the edge of the fixed panel. The new style eliminates
the small end plate, leaving a more aesthetic, uninterrupted glass
edge for the fixed panel.
Standard Reversible Pivot Pin: Each Pinnacle Hinge
contains a Reversible Pivot Pin. One side of the Pivot Pin is
marked at 90°; the opposite side of the Pivot Pin is marked 85°.
Standard Pinnacle Hinges come with the 90° side activated, which
brings the door to the standard closing position. Offset Models
come with the Pin pre-set for 85° (5° tighter closure into shower
interior). The Pin can be rotated (not flipped upside down) to
activate the other side.
Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) tempered
safety glass. There are 13 standard finishes, and custom finishes
are available upon request. Templates specific to these Hinges are
packed in each box, or are available by contacting the CRL
Technical Sales Department at (800) 421-6144, or by e-mail.
