Product Details:

New Model Eliminates Small End Plate Covering Hinge on Edge of Fixed Panel
Requires Holes in Fixed Panel and Cut-Out in Door
Use Monolithic Tempered Glass

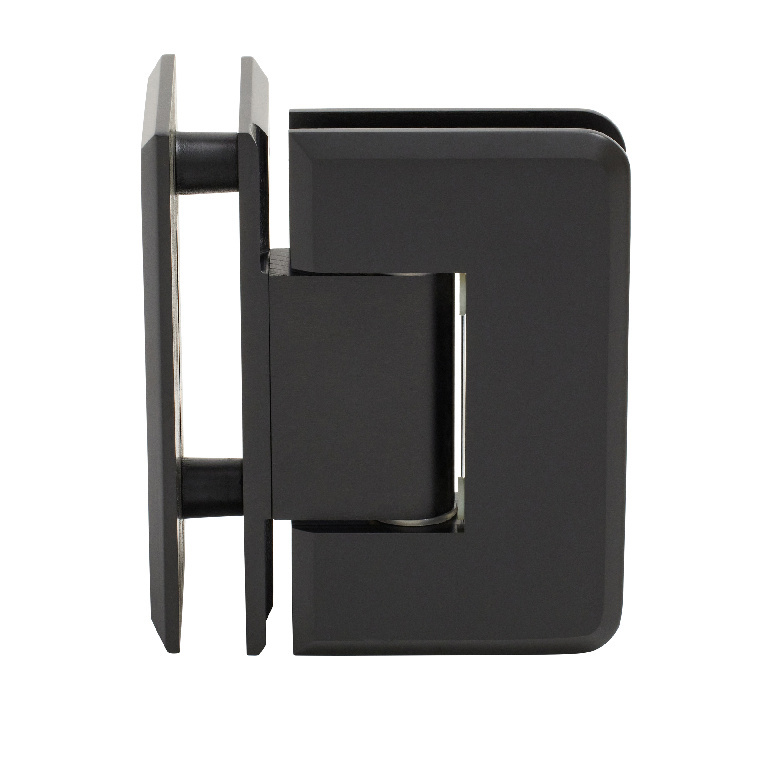

The new style CRL Pinnacle 092 Series 90° Glass-to- Glass Hinge replaces the old style Pinnacle 090 Series 90° Glass-to-Glass Hinge which required a cut-out in both the door and the fixed panel. This new style requires only two holes (per hinge) in the fixed panel, and a cut-out in the door.

Color: Oil Rubbed Bronze

Minimum Order: 1 Each

Additional Product Information:
After installation of the old style Pinnacle a small end plate was adhered to the edge of the fixed panel. The new style eliminates the small end plate, leaving a more aesthetic, uninterrupted glass edge for the fixed panel.

Standard Reversible Pivot Pin: Each Pinnacle Hinge contains a Reversible Pivot Pin. One side of the Pivot Pin is marked at 90°; the opposite side of the Pivot Pin is marked 85°. Standard Pinnacle Hinges come with the 90° side activated, which brings the door to the standard closing position. Offset Models come with the Pin pre-set for 85° (5° tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) tempered safety glass. There are 13 standard finishes, and custom finishes are available upon request. Templates specific to these Hinges are packed in each box, or are available by contacting the CRL Technical Sales Department at (800) 421-6144, or by e-mail.
