Category: CRL Pinnacle 074 Short Back Plate Hinge

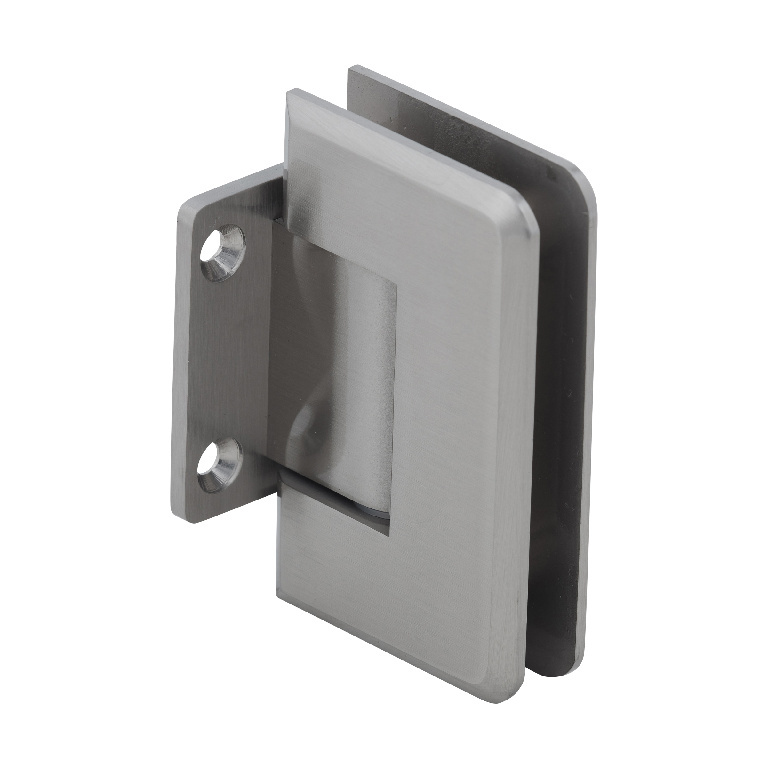

CRL Pinnacle 074 Series Brushed Nickel Wall Mount Short Back Plate Hinge (Standard Model)
SKU: P1N074BN
UPC:
Product Details:
Self-Centering with Reversible 5º Pivot
Pin
Available in Several Beautiful Finishes
The
CRL Pinnacle Series of professional hinges is
able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. A
variety of 10 styles, including Wall Mount and Glass-to-Glass
types, gives design flexibility. They are made of solid brass with
all moving parts (pins and springs) in stainless steel. Pinnacle
Hinges are self-centering, and contain a Reversible 5º Pivot Pin.
In addition, Custom Pivot Pins are available to accommodate
"off angle" installations.
Color: Brushed Nickel
Minimum Order: 1 Each
Standard Reversible Pivot Pin: Each Pinnacle Hinge
contains a Reversible Pivot Pin. One side of the Pin is marked
90º. The opposite side is marked 85º. Standard Pinnacle
Hinges come with the 90º side activated. Offset Models come
with the Pin pre-set to 85º (5º tighter closure into
shower interior). The Pin can be rotated (not flipped upside down)
to activate the other side.
Specifications:
Glass Thickness: 3/8 to 1/2 inch (12 millimeter) Tempered Safety
Glass
Construction: Solid Brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
