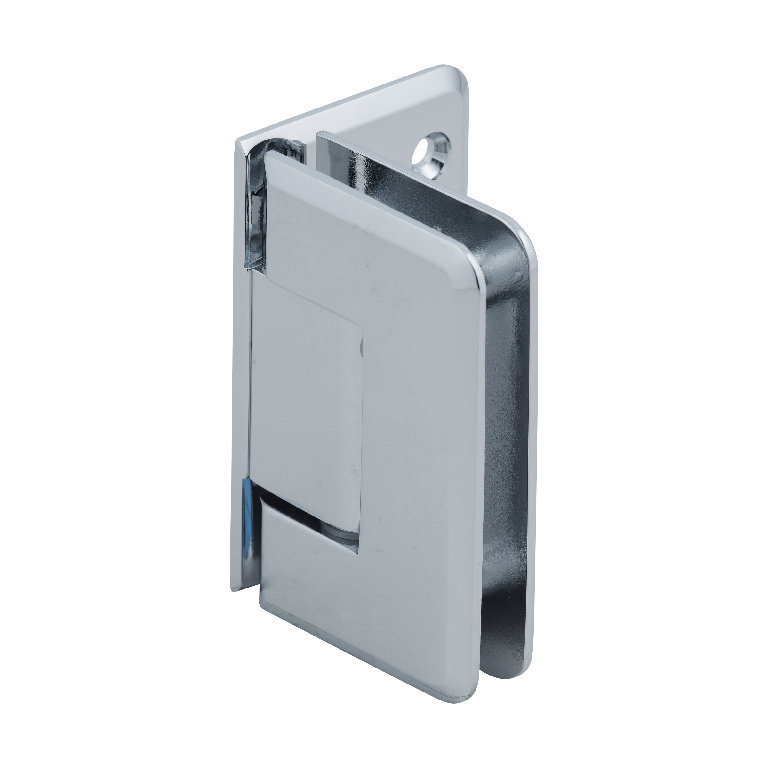

CRL Pinnacle 044 Series Polished Chrome Wall Mount Offset Back Plate Hinge
CRL Pinnacle 044 Series Polished Chrome Wall Mount Offset Back Plate Hinge | P1N044CH
Category: CRL Pinnacle 044 Wall Mount Offset Back Plate Hinge
CRL Pinnacle 044 Series Polished Chrome Wall Mount Offset Back Plate Hinge
SKU: P1N044CH
UPC:

$70.90 (20% off)

$59.08

Product Details:

Self-Centering with Reversible 5º Pivot Pin
Available in Several Beautiful Finishes
Three Year Warranty

The CRL Pinnacle Series of professional hinges is able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. A variety of 10 styles, including Wall Mount and Glass-to-Glass types, gives design flexibility. They are made of solid brass with all moving parts (pins and springs) in stainless steel. Pinnacle Hinges are self-centering, and contain a Reversible 5º Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off angle" installations.

Color: Polished Chrome

Minimum Order: 1 Each

Standard Reversible Pivot Pin: Each Pinnacle Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90º. The opposite side is marked 85º. Standard Pinnacle Hinges come with the 90º side activated. Offset Models come with the Pin pre-set to 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Specifications:
Glass Thickness: 3/8 to 1/2 inch (12 millimeter) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
