Category: CRL Petite 180 Glass-to-Glass Hinge

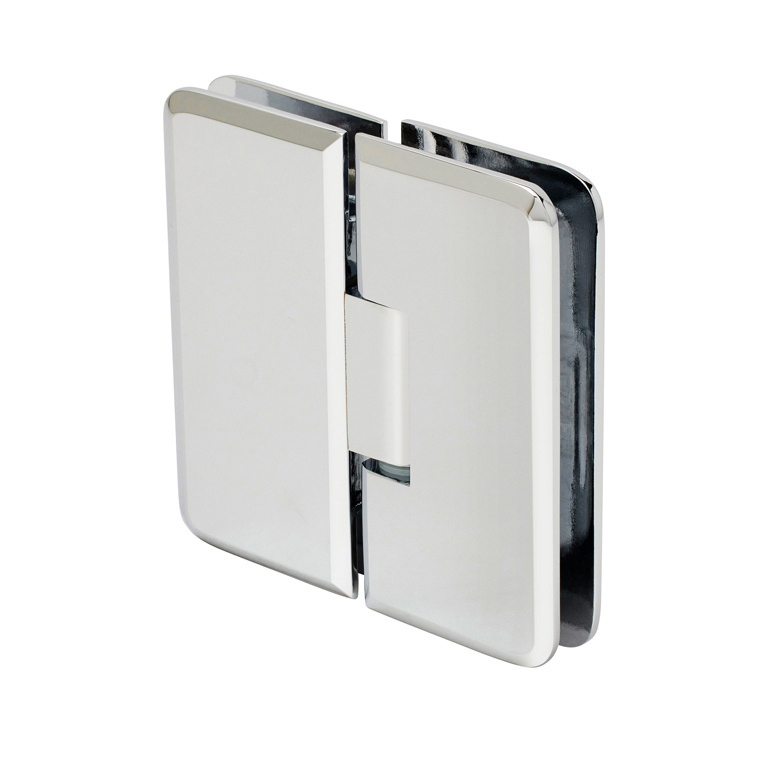

CRL Petite 180 Series Polished Chrome 180° Glass-to-Glass Hinge
SKU: PET180CH
UPC:
$139.31
(20% off)
$116.09
Product Details:

Precise Closing Feature to Zero Degrees
180 Degree Glass-to-Glass
The CRL Petite Series of professional hinges is
able to accommodate 1/4 to 5/16 inch (6 to 8 millimeter) tempered
safety glass. A variety of three styles, including Wall Mount and
Glass-to-Glass types, gives design flexibility and allows the
designer/installer to create custom enclosures limited only by
their imagination. The Petite Series provides a complete spectrum
of hinges for frameless shower doors using 1/4 to 5/16 inch (6 to 8
millimeter) safety glass. Developed to allow virtually every
application configuration, Petite Series Hinges deliver design
freedom. The Petite Series includes three unique types: the PET044
Wall Mount Flush Back Plate Hinge allows for a clean exterior sight
line by having all mounting screws inside the shower; the PET181
Glass-to-Glass Hinge is used to mount a door to a fixed panel in a
180° plane, and allows the door to swing in a complete 180° arc
outwards; the PET182 Glass-to-Glass Hinge allows the door to swing
in a complete 180° arc inwards. Petite Hinges have mitered edges
with curved corners to provide an aesthetically pleasing look.
Petite Hinges have 25% thicker plates than competitive hinges,
thereby reducing deflection and providing greater holding
power.
Color: Polished Chrome
Minimum Order: 1 Each
Additional Product Information:
Specifications:
Glass Thickness: 1/4 to 5/16 inch (6 to 8 millimeter) Tempered
Safety Glass
Special Feature: Hinge plates are 25% thicker than competitive
hinges, thereby reducing deflection and providing greater holding
power
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (except PET181 and PET182)
Closing Type: Precise Close to 0°
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
