Category: CRL Petite 037 Wall Mount Full Back Plate Hinge

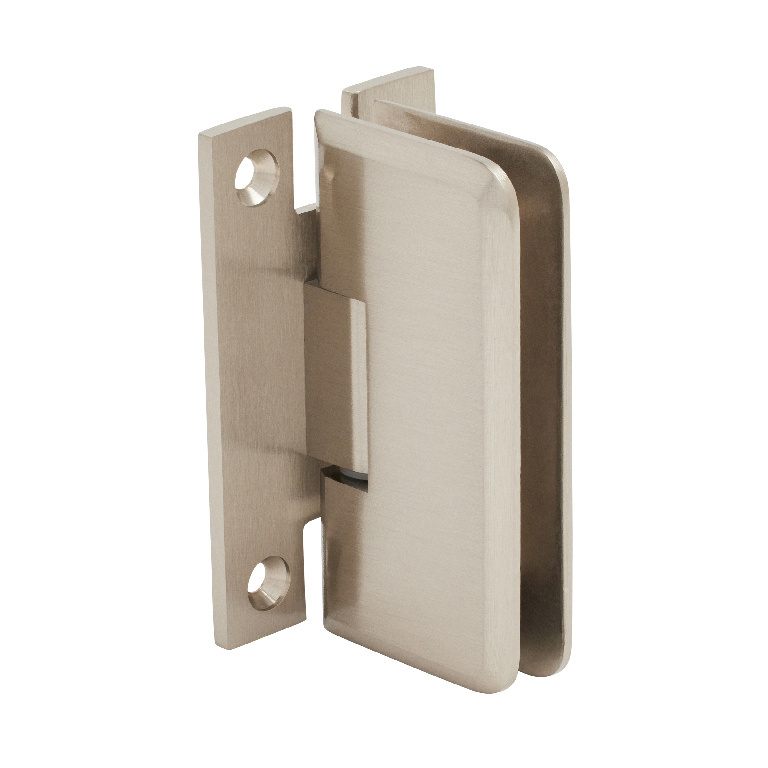

CRL Petite 037 Series Brushed Nickel Wall Mount Full Back Plate Hinge
SKU: PET037BN
UPC:
Product Details:
Precise Closing Feature to Zero Degrees
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass
The CRL Petite Series of professional hinges is
able to accommodate 1/4 to 5/16 inch (6 to 8 millimeter) tempered
safety glass. A variety of three styles, including Wall Mount and
Glass-to-Glass types, gives design flexibility and allows the
designer/installer to create custom enclosures limited only by
their imagination. The Petite Series provides a complete spectrum
of hinges for frameless shower doors using 1/4 to 5/16 inch (6 to 8
millimeter) safety glass. Developed to allow virtually every
application configuration, Petite Series Hinges deliver design
freedom. Petite Hinges have mitered edges with curved corners to
provide an aesthetically pleasing look. Petite Hinges have 25%
thicker plates than competitive hinges, thereby reducing deflection
and providing greater holding power.
Color: Brushed Nickel
Minimum Order: 1 Each
Additional Product Information:
Specifications:
Glass Thickness: 1/4 to 5/16 inch (6 to 8 millimeter) Tempered
Safety Glass
Special Feature: Hinge plates are 25% thicker than competitive
hinges, thereby reducing deflection and providing greater holding
power
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (except PET181 and PET182)
Closing Type: Precise Close to 0°
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
