Product Details:
- With 4" Tapered DR4T Series Door Rails and 4" Tapered
SR4T Series Sidelite Bottom Rails
- Available in Several Architectural
Finishes
|

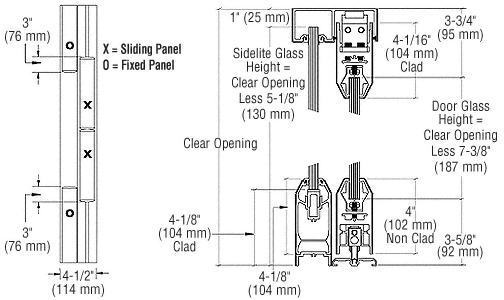

The CRL SSR Bottom Rolling Sliding Door System with
4" (101.6 mm) Tapered Rails utilizes our popular
Wedge-Lock™ Glass Securing System found in the DR4T Series Door
Rails on all sliding panels. They can be ordered with or without
locks in the bottom rail. The fixed panels utilize our popular SR4T
Series Sidelite Rails with roll-in vinyl at the bottom of the
panel, and an integrated glazing channel with roll-in vinyl in the
top track. Maximum door width is 48 inches (1219 millimeters);
maximum door height is 108 inches (2743 millimeters), with a
maximum weight not to exceed 234 pounds (106 kilograms). All panels
are custom fabricated to your specifications. NOTE: Available by
custom order only. Most orders can be fabricated in five business
days at our Los Angeles, California manufacturing facility. Contact
CRL Technical
Sales at (888) 663-9830 in the U.S., (877) 421-6144 from Canada,
and ask for Ext. 7700. You can also send e-mail from the
crlaurence.com home page. Click on Contact Us, and then click on
Technical Sales.
- Door Configuration: OXXO
- Color: Black Bronze
