Product Details:
- With 4" Square DR4S Series Door Top Rails, 6" Square
DR6S Series Door Bottom Rails and 6" Square SR6S Series Sidelite
Bottom Rails
- Available in Several Architectural
Finishes
- For Use With 3/8" or 1/2" (10 or 12 mm) Tempered
Glass
|

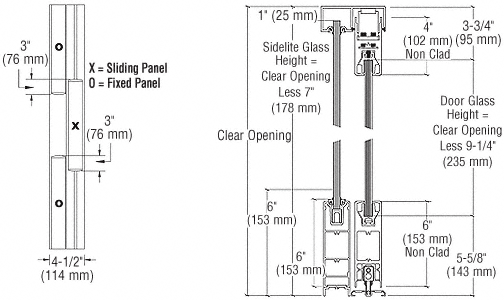

The CRL SSR Bottom Rolling Sliding Door System with
4" (101.6 mm) Square Door Top Rails and 6" (152.4 mm)Square Door
Bottom Rails, utilizes our popular WedgeLock™ Glass
Securing System found in the DR4S and DR6S Series Door Rails on all
sliding panels. They can be ordered with or without locks in the
bottom rail. The fixed panels utilize our popular SR6S Series
Sidelite Rails with roll-in vinyl at the bottom of the panel, and
an integrated glazing channel with roll-in vinyl in the top track.
Maximum door width is 48 inches (1219 millimeters); maximum door
height is 108 inches (2743 millimeters), with a maximum weight not
to exceed 234 pounds (106 kilograms). All panels are custom
fabricated to your specifications. NOTE: Available by custom order
only. Most orders can be fabricated in five business days at our
Los Angeles, California manufacturing facility. Contact us at (888)
663-9830 in the U.S., (877) 421-6144 from Canada, and ask for Ext.
7700. You can also send e-mail from the crlaurence.com home page.
Click on Contact Us, and then click on Technical Sales.
- Door Configuration: OXO
- Color: Satin Brass
