Product Details:
- With 4" Square DR4S Series Door Rails and 4" Square
SR4S Series Sidelite Bottom Rails
- Available in Several Architectural
Finishes
|

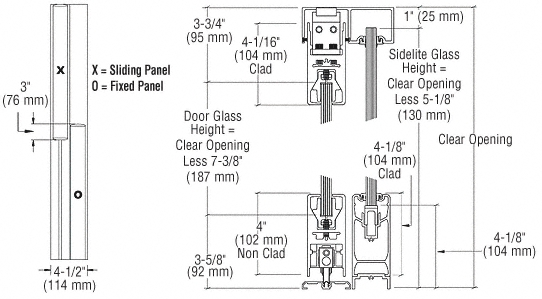

The CRL SSR Bottom Rolling Sliding Door System with
4" (101.6 mm) Square Rails utilizes our
popular Wedge-Lock™ Glass Securing System found in the DR4S Series
Door Rails on all sliding panels. They can be ordered with or
without locks in the bottom rail. The fixed panels utilize our
popular SR4S Series Sidelite Rails with roll-in vinyl at the bottom
of the panel, and an integrated glazing channel with roll-in vinyl
in the top track.
Maximum door width is 48 inches (1219 millimeters); maximum door
height is 108 inches (2743 millimeters), with a maximum weight not
to exceed 234 pounds (106 kilograms). All panels are custom
fabricated to your specifications. NOTE: Available by
custom order only. Most orders can be fabricated in five business
days at our Los Angeles, California manufacturing facility. Contact
us at (888) 663-9830 in the U.S., (877) 421-6144 from Canada, and
ask for Ext. 7700. You can also send e-mail from the crlaurence.com
home page. Click on Contact Us, and then click on Technical
Sales.
- Door Configuration: XO or OX
- Color: Polished Brass
