Product Details:

For 3/8" to 1/2" (10 to 12 mm) Glass
Solid Brass
Available in Several Beautiful Finishes

CRL Square Style 180 Degree Glass-to-Glass Clamps have sharp squared off corners. They can be used to connect two fixed glass panels meting inline. Clamps are designed to clamp 3/8 to 1/2 inch (10 to 12 millimeter) glass fixed transom or inline panel installations in frameless shower enclosures.

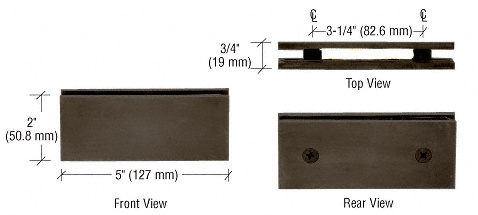

Drawings and templates are available.

Color:  Oil Rubbed Bronze
Width:  5 in (127 mm)
Height: 2 in (50.8 mm)

Minimum Order: 1 Each

Specifications
Material: Forged Solid Brass
Glass Thickness Range: 3/8 to 1/2 Inch (10 to 12 millimeter)
Fabrication Required: 3/4 Inch (19 millimeter) Holes for Glass-to-Glass Clamps, Notch for Wall Mount Clamps
Includes: Mounting Screws (for wall clamps) and Gaskets
