Category: CRL Junior Traditional Fixed Panel U-Clamp
CRL Oil Rubbed Bronze Junior Traditional Style Fixed Panel U-Clamp
SKU: UC660RB
UPC:
Product Details:

For 1/4" (6 mm) Glass
Solid Brass
CRL Junior Traditional Style Fixed Panel
U-Clamp mounts directly to the wall, ceiling or floor to
secure vertical fixed glass panels. The corners are rounded off.
Clearance between the glass and wall is from 5/32 to 3/16 inch (4.0
to 4.8 millimeter). Clear silicone can be used to seal the gap and
provide a clean, water-tight
appearance.

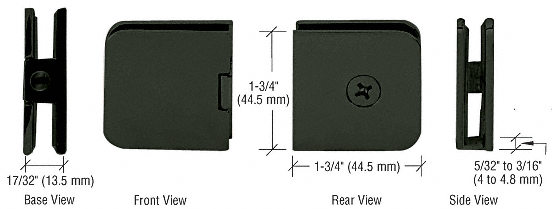

Color: Oil Rubbed Bronze
Width: 1-3/4 in (44.5 mm)
Height:1-3/4 in (44.5 mm)
Minimum Order: 1 Each
Specifications:
Material: Solid Brass
Glass Thickness Range: 1/4 Inch (6 millimeter)
Hole Diameter Required: 5/8 or 3/4 Inch (8 or 19 millimeter) Each
Panel
Includes: Mounting Screws and Gaskets
