Product Details:
Secures Shower Enclosure Not Going to Ceiling
Allows Horizontal (Side-to-Side) Adjustment of Hinge After
Installation
No Hole Drilling Required Through Header or Adaptor, if Using Prima
Hinge Model PPH06
or Senior Prima Hinge Model SRPPH06
Constructed of Heavy 6063-T5 Aluminum Alloy
For Use With 5/16", 3/8", and 1/2" (8, 10, and 12 mm) Thick
Glass
The CRL EZ-Adjust Shower Door Header
Kit provides a safe and beautiful frameless shower
installation by securing enclosures that do not reach the ceiling.

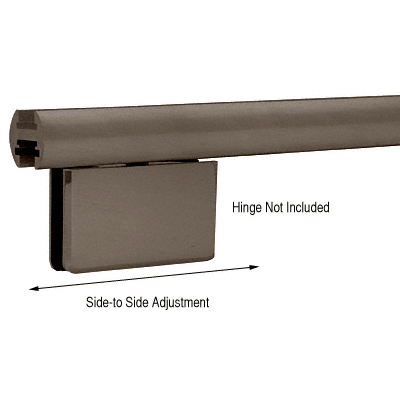

Acting as a "crown" over the top of the glass, the EZ-Adjust Shower
Door Header Kit is bracketed to each wall. The EZ-Adjust System
allows adjustability after installation in that the hinge (PPH06
and SRPPH06 only) can be moved left and right as desired. No
drilling through the Header is required for an Adaptor Block if
Using Prima Hinge Model PPH06 or Senior Prima Hinge Model SRPPH06,
due to a built-in adaptation to the hinges. Constructed of heavy
6063-T5 aluminum alloy, the EZ-Adjust Header Kit is stocked in
several popular finishes.
A choice of 98 and 144 inch (2.49 and 3.66 meters) stock lengths
allow the user to cut as desired. A Snap-In Filler Insert for the
door pocket, along with Wall Mounting Brackets and Clear Glazing
Vinyl round out the Kit.
Color: Oil Rubbed Bronze
Length: 98 in (2.49 m)
Important Notes:
Prima Hinge Model PPH06 and Senior Prima Hinge Model SRPPH06 can be
used only with the EZ-Adjust Header
System, due to a built-in adaptation to the hinges. No drilling
required in Header when using those hinges. If using other Top
Mount Pivot Hinges with the EZ-Adjust Header System, an Adaptor
Block must be ordered separately, and drilling will be required
through the Header to accommodate the Adaptor Block.
