Category: CRL Cologne Series Wall Mount Hinges

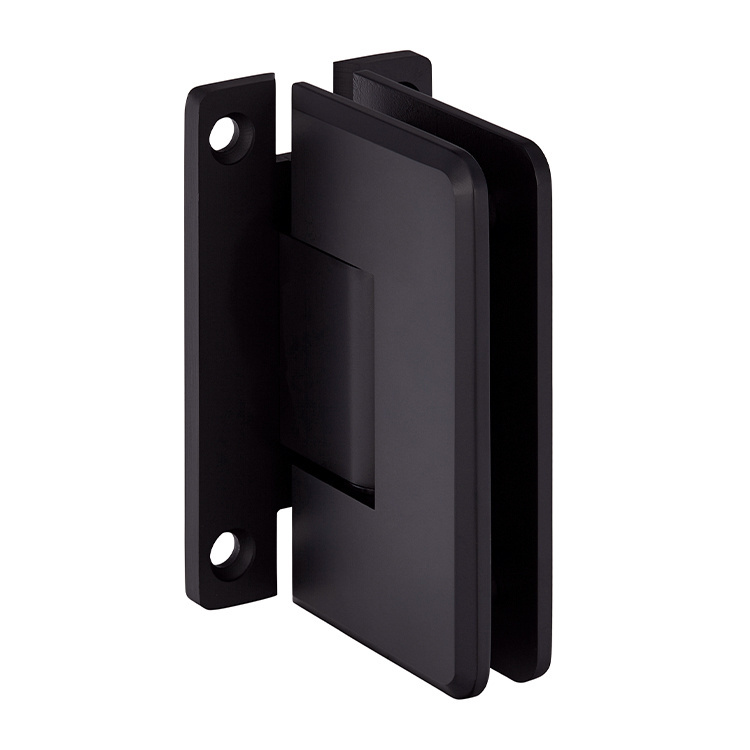

CRL Oil Rubbed Bronze Cologne 537 Series Wall Mount Full Back Plate Standard Shower Door Hinge with 5º Offset
SKU: C0L5370RB
UPC:
$136.86
(20% off)
$114.05
Product Details:
Factory Set for 5 Degree Offset Closure into Shower Interior
Accommodates 3/8" to 1/2" Glass
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass
The CRL Cologne Series of professional hinges
is able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass.
A variety of styles, including Wall Mount and Glass-to-Glass types,
gives design flexibility. They are made of solid brass with all
moving parts (pins and springs) in stainless steel. Cologne Hinges
are self-centering, and contain a Reversible 5º Pivot Pin. In
addition, Custom Pivot Pins are available to accommodate "off
angle" installations.
Color: Oil Rubbed Bronze
Minimum Order: 1 Each
Additional Product Information:
Using two hinges with 3/8 or 1/2 inch glass (10 or 12 millimeters)
the hinge will hold up to 110 pounds (50 kilograms) with a maximum
width of 36 inches (914 millimeters).
Using three hinges with 3/8 or 1/2 inch glass (10 or 12
millimeters) the hinge will hold up to 140 pounds (63 kilograms)
with a maximum width of 36 inches (914 millimeters).
Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered
Safety Glass
Construction: Solid Brass
Fabrication Requirements: Optional Square or "Mouse Ears"
Cut-out
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of Closed Position
Includes: One Hinge, Gaskets, Screws and Template
