Product Details:
- Adjustable to Any Angle Up To 90 Degrees Without Removing
Door
- Available in Several Beautiful Finishes
- Adjustable 180º Glass-to-Glass

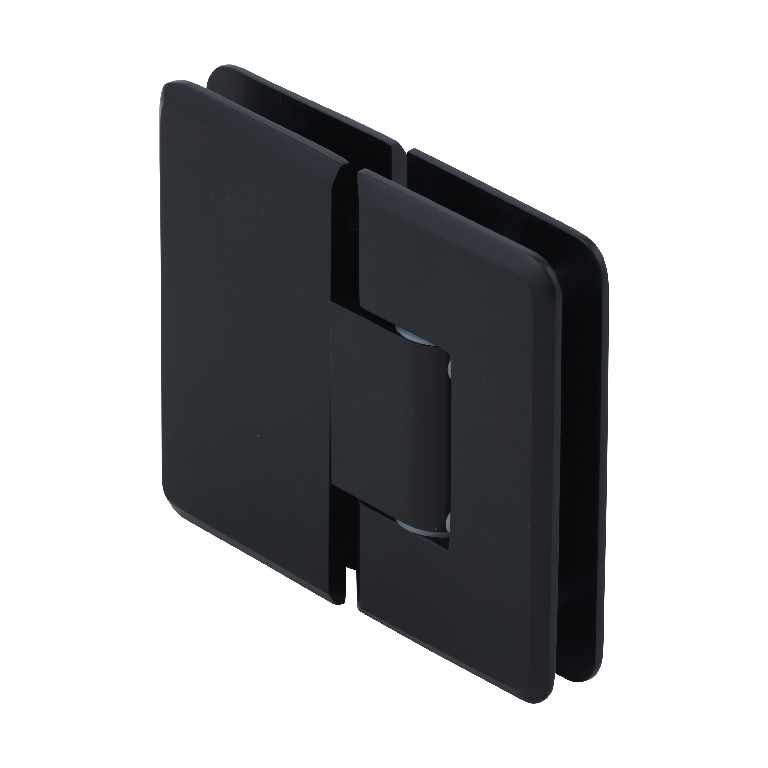

The
CRL Cologne Adjustable Series of professional
hinges is able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter)
tempered safety glass. Two styles, Wall Mount and Glass-to-Glass
types, gives design flexibility and allows the designer/installer
to create custom enclosures limited only by their imagination. The
Cologne Adjustable Series has taken our popular Cologne Series to a
new level. Adjustment to accommodate the angle desired (up to 90
degrees) is done after the door is installed. Once the door is
hung, simply loosen the allen screws and turn the door to the
desired closed position. By merely tightening the allen screws,
your door will close precisely to 0 degrees. The door can swing 90
degrees inward and also 90 degrees outward (adjusting angle from
factory set position will reduce 90 degree swing in that
direction). For doors pulling outwards only (using a clear door
jamb), you can adjust the hinge to close 5 degree inside the shower
area, thus having the door close snugly against the jamb.
Using two hinges with 3/8 to 1/2 inch glass (10 to 12 millimeter)
the hinge will hold up to 110 pounds (50 kilograms) with a maximum
width of 36 inches (914 millimeters).Using three hinges with 3/8 to
1/2 inch glass (10 to 12 millimeter) the hinge will hold up to 140
pounds (63 kilograms) with a maximum width of 36 inches (914
millimeters).
Specifications:
- Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered
Safety Glass
- Special Feature: Adjustable to any angle up to 90 degrees
without having to take door down
- Construction: Solid Brass
- Hinge Swings: 90 Degrees Inwards and Outwards (at factory set
position)
- Closing Type: Precise closing at 0 Degrees
- Cut-Out Required
- Includes: One Hinge, Gaskets, Screws and Template.
