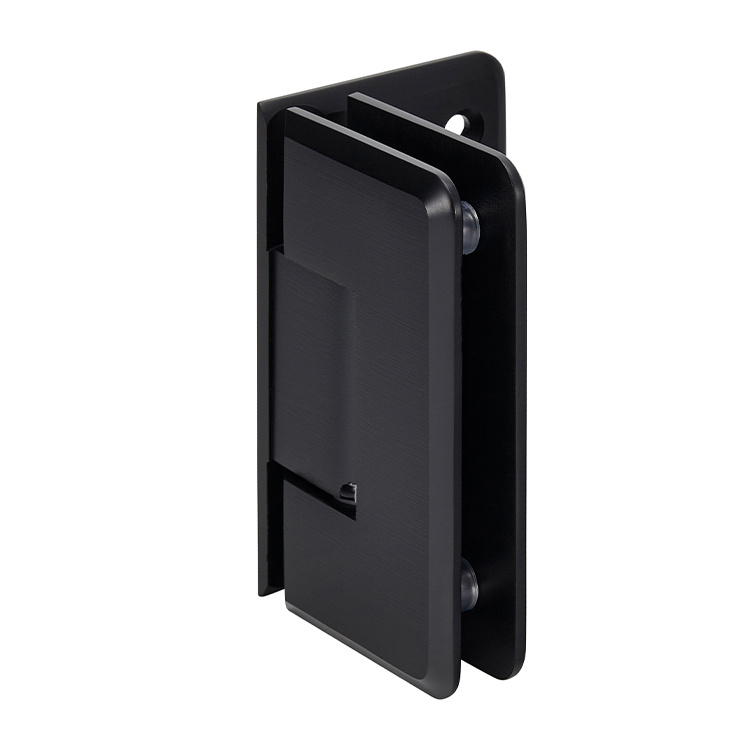

CRL Oil Rubbed Bronze Cologne 044 Series Wall Mount Offset Back Plate Hinge
Category: Just Arrived!
CRL Oil Rubbed Bronze Cologne 044 Series Wall Mount Offset Back Plate Hinge
SKU: C0L0440RB
UPC:
$130.39
(20% off)
$108.66
Product Details:
- Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
The CRL Cologne Series of professional
hinges is able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter)
glass. A variety of styles, including Wall Mount and Glass-to-Glass
types, gives design flexibility. They are made of solid brass with
all moving parts (pins and springs) in stainless steel. Cologne
Hinges are self-centering, and contain a Reversible 5º Pivot
Pin. In addition, Custom Pivot Pins are available to accommodate
"off angle" installations.
Standard Reversible Pivot Pin: Each Cologne Hinge
contains a Reversible Pivot Pin. One side of the Pin is marked 90
degrees. The opposite side is marked 85 degrees. Offset Models come
with the Pin pre-set to 85 degrees (5 degree tighter closure into
the shower interior). The Pin can be rotated (not flipped upside
down) to activate the other side. Standard Cologne Hinges come with
the 90 degrees side activated.
