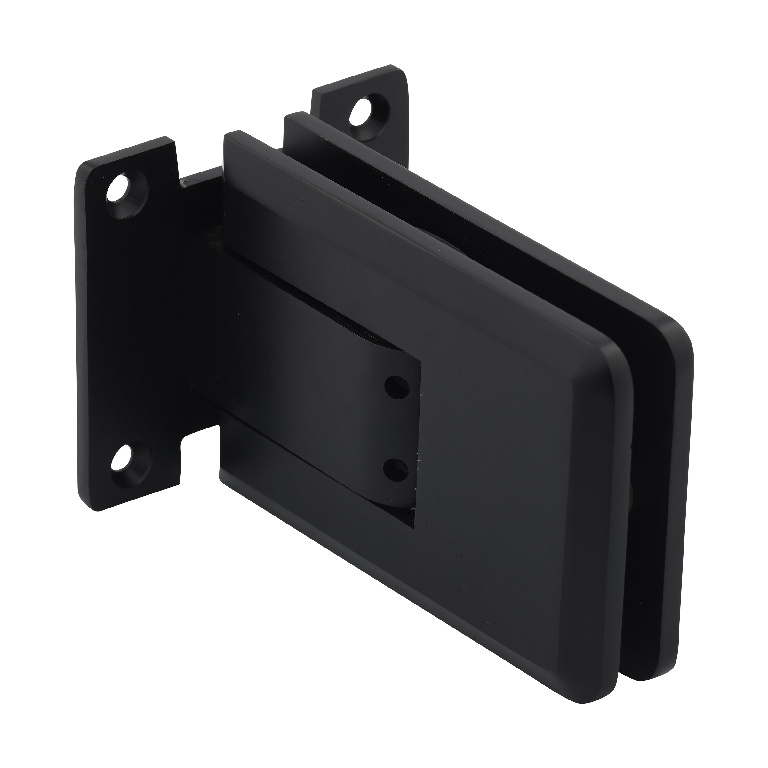

Self-Centering Hinge
For 5/16" to 1/2" (8 to 12 mm) Tempered Glass
Easy Closed Position Adjustment for Double Door or Inline Panel
Applications
Ideal for Large Interior Doors
Hold Open at 90 Degrees
CRL Atlas Series 'All-Glass' Door Hinges are
ideal for new or retrofit interior 'all-glass' doors where a floor
or overhead closer in not an option. This innovative Hinge gives
you the better of two worlds; minimal hardware and self-centering
action, all wrapped up in a stylish, heavy-duty Hinge. Two of these
double-acting Hinges will allow you to create 'all-glass' doors
weighing up to 140 pounds (63.5 kilograms) with a maximum width of
39 inches (1000 millimeters). Do not exceed two hinges per
door.
Color: Oil Rubbed Bronze
Additional Product Information:
The self-centering function with adjustable spring strength
eliminates the need for any closer mechanism, and will self-center
the door from any position. When fully opened, the CRL Atlas Series
‘All-Glass’ Door Hinge will hold open at 90 degrees. These Hinges
offer easy fine-tune closed position adjustment, making
installation of double doors or inline panels simple.
The solid brass construction and stainless steel components make
the CRL Atlas Series ‘All-Glass’ Door Hinge a natural for sauna or
steam room applications, or any location that may involve excess
moisture.
The notch and hole design of the glass preparation makes for a safe
and secure installation, eliminating the worry over hanging large
doors on jamb-mounted hardware. The large, wide mounting plate
helps distribute the load, but as always, adequate structure is
required wherever you mount these Hinges.
Important Note:
Cut-out dimensions for CRL hinges may not match those of other
brands.
|
Maximum
Door Capacities
|
5/16" to 1/2" (8 to12mm
Glass)
Weight
Width
|
Using 2 Hinges |
140
lbs
39 in |
|
