Category: 4" Tapered Sidelite Rails - Custom Length
CRL Oil Rubbed Bronze 4" Tapered Sidelite Rail for 3/8" or 1/2" Glass - Custom Length
SKU: SR4T0RB3812CL
UPC:
Product Details:
- Extruded Saddle Is Reversible to Match 1/4" and 3/4"
Door Clearances
- Dry Glaze Push-In Top Load Glazing Gasket for 3/8" and
1/2" Glass
- Many Finishes to Match CRL Door Rails
|
The tapered profile of this CRL Sidelite
Rail matches perfectly with our Four Inch (101.6 millimeter) Tapered
Style Wedge Lock Door Rails. It is available in many finishes
to match heights to both floor mounted and 1/2 inch (13
millimeters) threshold doors using our Reversible Saddle. Use the
Sidelite Rails alone for your upper rails, and with our Aluminum Neoprene Setting Blocks,
lifting the glass into the upper rail and lowering into the bottom
rail. This will give you a 9/16 inch (14 millimeters) glass
retention in both the top and bottom channels. Complete the job by
installing the Roll-In EPDM
Gaskets and matching finish End Caps.

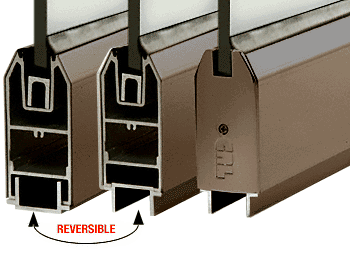

Shown with End Caps which must be ordered separately.
