Product Details:

Commonly Used On U.S. Aluminum Flush with Frame Face Doors
Handed - Non Reversible
1/8" (3.2 mm) Vertical Adjustment

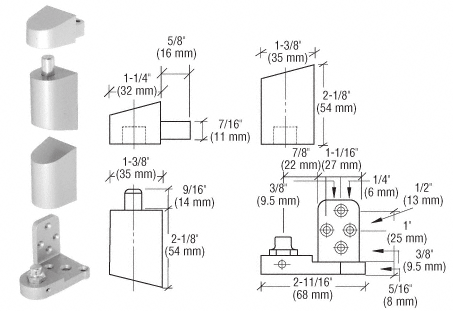

The CRL Offset Handed Pivot Set Flush with Frame Face is commonly used on U.S. Aluminum type flush with frame face doors. Suitable for aluminum frames and doors weighing up to 125 pounds (57 kilograms), the matching contemporary design will complement any other comparable door system.

Color: Aluminum

Minimum Order: 1 Set


Additional Product Information:
This pivot is handed and non-reversible. Vertical adjustment can be made up to 1/8 inch (3.2 millimeter) without removing the door. The fully retractable spring loaded hardened top pin makes for easy door installation and adjustment. An oilite bronze bushing is standard for the top frame portion and full race bearing in the bottom door portion.
